3510 Series
It does not flinch at an awkward speaker.
A stereo power amplifier that takes 1.85 volts in and puts 110 watts per channel into 8 ohms, on the same large custom-made toroidal supply as the rest of the tier. No controls, because it needs none. Designed and built in Lancing, West Sussex.

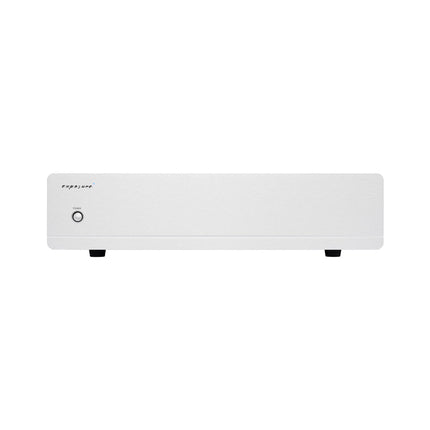

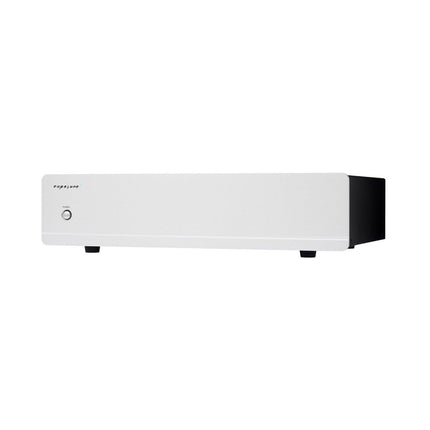

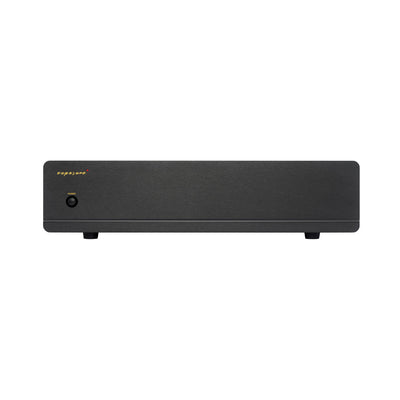

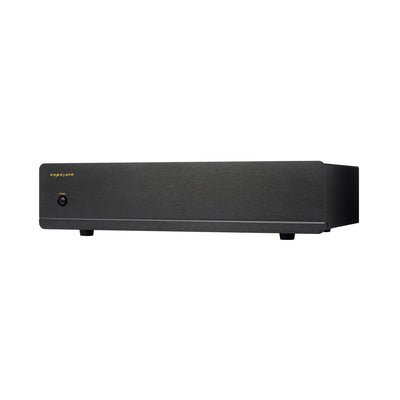

Exposure 3510 Stereo Power Amplifier
Popular upgrades
Pairs well with
Designed and built in Lancing, West Sussex since 1974. Three-year guarantee.
Exposure 3510 Stereo Power Amplifier
Separates
The half of the system that only does one thing.
Measured Measured 135 W into 8 ohms against a 110 W rating, with 28.2 A maximum current and 795 W dynamic into 1 ohm β the most current in the tier. Hi-Fi News lab report, Paul Miller, December 2022.
- XMHalf-width separates. Phono, integrated, pre, mono, headphone, CD.
- 2510Full-width. Seventy-five watts, with an MM phono stage as standard.
- 3510The complete tier. Integrated, pre, stereo power, monoblocks and CD.You are here
- 5510The current flagship. One hundred and twenty watts, black only.
Within this tier
- Integrated
- Pre
- Stereo power
- Monoblocks
- CD player
Power, Distortion, Mass
Nothing on the front panel. Everything behind it.
Measured at 1 kHz, from the same large custom-made toroidal transformer and smoothing capacitor bank the rest of the tier uses.
At rated output, referenced to 1 kHz, with channel separation better than 60 dB across the whole audio band.
440 by 115 by 300 mm of casework designed to control resonance and shield the circuits. Most of the mass is transformer.
Technical specifications
| Power output (stereo) | 110 W per channel @ 1 kHz into 8 Ξ© |
| Total harmonic distortion | <0.015% at rated output, ref. 1 kHz |
| Frequency response | 20 Hz β 20 kHz Β±0.5 dB |
| Signal-to-noise ratio | >100 dB, ref. rated output |
| Channel separation | >60 dB, 20 Hz β 20 kHz |
| Input impedance | 18 kΞ© |
| Input sensitivity | 1.85 V @ 1 kHz |

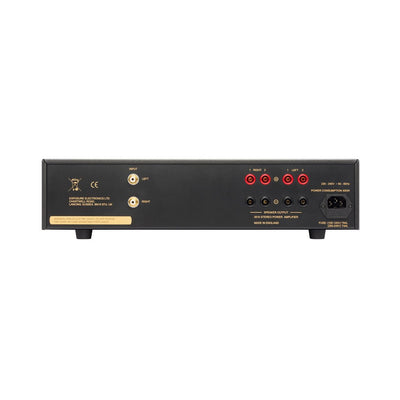

| Speaker terminals | Shrouded bi-wire pairs, 4 mm banana plugs only β no bare wire or spade lugs |
| Mains supply | 110/120 V or 220/240 V @ 50/60 Hz, factory set |
| Power consumption | <400 W, 8 Ξ© load, both channels driven |
| Dimensions and weight | 440 Γ 115 Γ 300 mm (W Γ H Γ D), 12 kg net / 14 kg gross |
Do I need a preamplifier with this?
This or a pair of 3510 monoblocks?
What speaker cable does it take?
About the Exposure 3510 Stereo Power Amplifier
Reference Power on a Real Budget: Exposure 3510 Stereo Power Amplifier
The Exposure 3510 Stereo Power Amplifier takes the engineering of Exposure's flagship reference 5010 series and delivers it at a fraction of the price. Rated at 110 watts per channel into 8 ohms β and, as Hi-Fi News noted of the 3510 amplification, "beefier in practice" β it's a high-power, high-performance amplifier built to drive difficult loudspeakers with clean, extended, effortless bass. Hi-Fi News handed the 3510 pre/power its "Outstanding" badge, praising a design where "simplicity has been elevated almost to an art form."
Built From the Reference Down
Inside sits a high-capacity, custom-made toroidal transformer and a substantial power supply, feeding rugged Toshiba bipolar output transistors and high-quality capacitors in the signal path. The result is the fast, controlled, uncoloured delivery that defines the Exposure sound. It accepts both banana and BFA-style connectors and is happy in bi-wire or bi-amp configurations β pair it with the 3510 integrated amplifier for a bi-amped system, or run it on its own.
Simple, Solid, Serious
No gimmicks, no clutter β just an understated aluminium chassis, in black or titanium, engineered to put every penny into the amplification. This is the kind of power amp that quietly makes your speakers sound like they cost far more.
Why You'll Love the Exposure 3510 Stereo Power Amplifier
- 110 W per channel into 8 ohms β reference-derived power, "beefier in practice"
- 5010-series engineering β flagship circuit thinking at a fraction of the cost
- Custom toroidal transformer β high-capacity supply for effortless dynamics
- Toshiba bipolar output devices β fast, controlled, high-quality signal path
- Bi-wire / bi-amp ready β banana or BFA connectors, flexible system building
- "Outstanding" β Hi-Fi News β hand-built in England, black or titanium
Frequently Asked Questions
Can I bi-amp with the 3510 stereo power amplifier?
Yes. It's designed for bi-wire and bi-amp use β pair it with the Exposure 3510 integrated amplifier to bi-amp a suitable loudspeaker, or run it as a standalone stereo power amp.
Will it drive difficult speakers?
That's exactly its brief. With 110 W per channel (and headroom beyond the rating), a high-capacity toroidal supply and rugged output devices, it's built for clean, extended low-frequency control into demanding loads.
What preamplifier partners it?
The Exposure 3510 preamplifier is the natural match, completing a 3510 pre/power system that earned Hi-Fi News' "Outstanding" award.
Exposure 3510 Stereo Power Amplifier Technical Specifications
| Type | Stereo power amplifier |
| Power output | 110 W RMS per channel into 8 ohms |
| Output devices | Toshiba bipolar transistors |
| Power supply | High-capacity custom toroidal transformer |
| Signal path | High-quality capacitors |
| Speaker connectors | Banana or BFA; bi-wire / bi-amp friendly |
| Chassis | Aluminium, black or titanium |
| Based on | Reference 5010 series |
| Made in | England β Exposure Electronics, est. 1974 |
