3510 Series
A drawer is just one more thing to go wrong.
A top-loading transport feeding two Burr-Brown PCM1704 24-bit chips in dual-mono, with a display you can switch off and digital outputs so the transport can outlive the converter. Designed and built in Lancing, West Sussex.

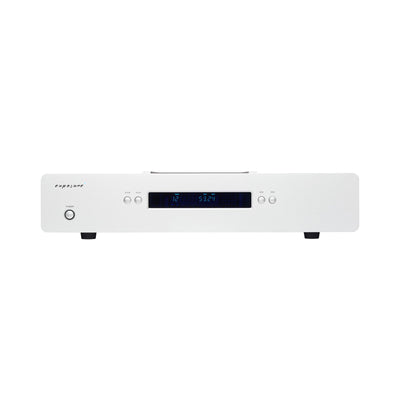

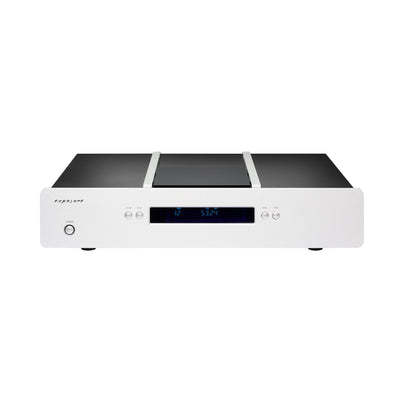

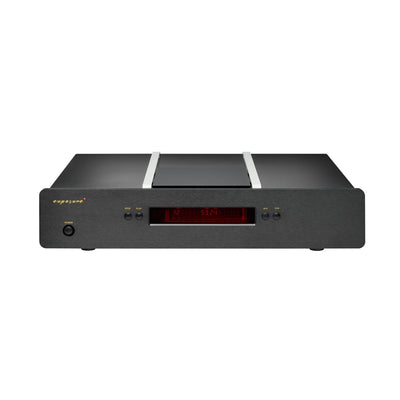

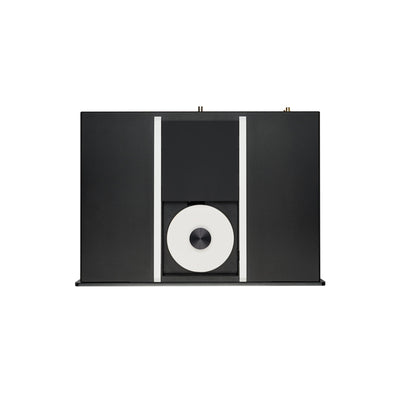

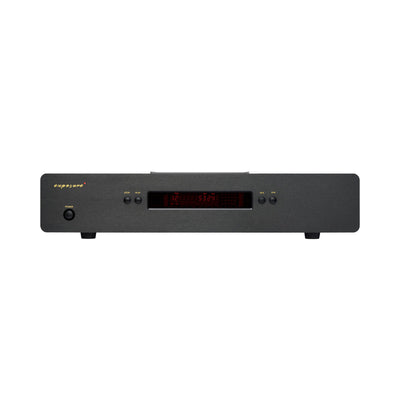

Exposure 3510 Top-Loading CD Player
Popular upgrades
Pairs well with
Designed and built in Lancing, West Sussex since 1974. Three-year guarantee.
Exposure 3510 Top-Loading CD Player
Converters, Distortion, Display
Three decisions you can hear.
Burr-Brown PCM1704 24-bit chips running dual-mono, so left and right stay independent the whole way through conversion.
Measured across the full audio band at 0 dBFS, with response held to plus or minus a quarter of a decibel.
The display switches off. A screen is a noise source sitting inside the same box as the converter, and Exposure lets you remove it.
Technical specifications
| Converter | Dual-mono Burr-Brown PCM1704 24-bit, one per channel |
| Output level | 2 V RMS |
| Frequency response | 20 Hz – 20 kHz ±0.25 dB |
| Total harmonic distortion | <0.007%, 20 Hz – 20 kHz, 0 dBFS |
| Signal-to-noise ratio | >100 dB (A-weighted) |
| Digital outputs | S/PDIF coaxial and Toslink optical |
| Power consumption | <25 VA |
| Dimensions and weight | 440 × 94 × 300 mm (W × H × D), 5 kg net / 7 kg gross |
Why top-loading?
What converter does it use?
Can I use it as a transport with a separate DAC?
Why can the display be switched off?
About the Exposure 3510 Top-Loading CD Player
Top-loading, dual-mono, and quiet by design
The Exposure 3510 Top-Loading CD Player completes the 3510 family. A top-loading transport, two Burr-Brown PCM1704 24-bit DAC chips running dual-mono — one per channel — and a display you can switch off when you want the box as electrically quiet as it will go.
One converter per channel
The PCM1704 has a long reputation for resolution and channel separation. Running two of them, one per channel, keeps left and right independent the whole way through conversion. Distortion measures below 0.007% across the audio band at 0 dBFS, with a signal-to-noise ratio better than 100 dB A-weighted and frequency response held to ±0.25 dB.
The transport can outlive the converter

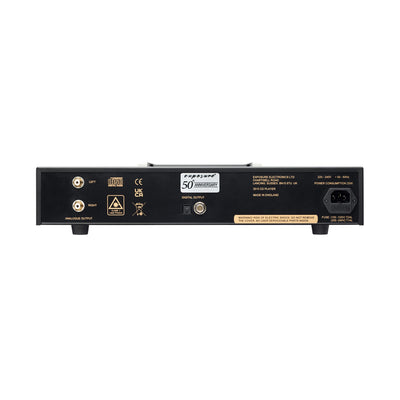

Coaxial and Toslink optical digital outputs mean the disc mechanism is not tied to the DAC inside it. If you change converters later, the transport stays.
Built to sit in the stack
Full-width 3510 casework in black or titanium, 440 × 94 × 300 mm and five kilograms, so it matches the rest of the tier. Designed and built in Lancing, West Sussex, where Exposure has operated since 1974, and covered by a three-year guarantee.
Exposure 3510 Top-Loading CD Player specifications
| Type | CD player, top-loading transport |
| Converter | Dual-mono Burr-Brown PCM1704 24-bit, one per channel |
| Output level | 2 V RMS |
| Frequency response | 20 Hz – 20 kHz ±0.25 dB |
| Total harmonic distortion | Below 0.007%, 20 Hz – 20 kHz, 0 dBFS |
| Signal-to-noise ratio | Better than 100 dB, A-weighted |
| Digital outputs | S/PDIF coaxial and Toslink optical |
| Display | Defeatable for lowest-noise listening |
| Power consumption | Under 25 VA |
| Dimensions | 440 × 94 × 300 mm (W × H × D) |
| Weight | 5 kg net, 7 kg gross |
| Finishes | Black or titanium |
| Built in | England — Exposure Electronics, Lancing, West Sussex, est. 1974 |
| Guarantee | Three years |
