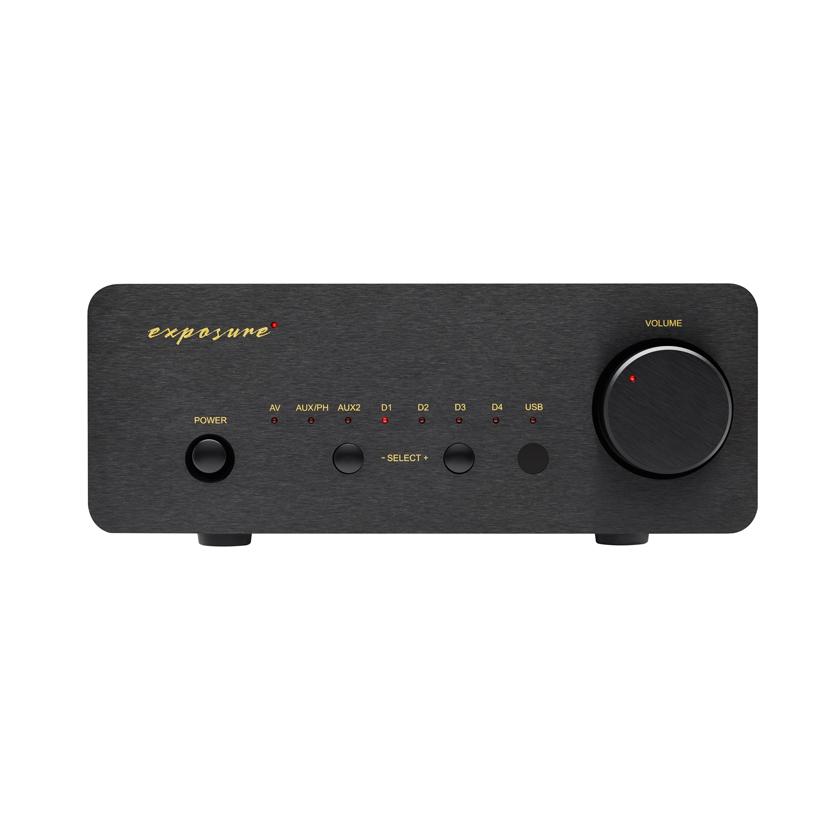

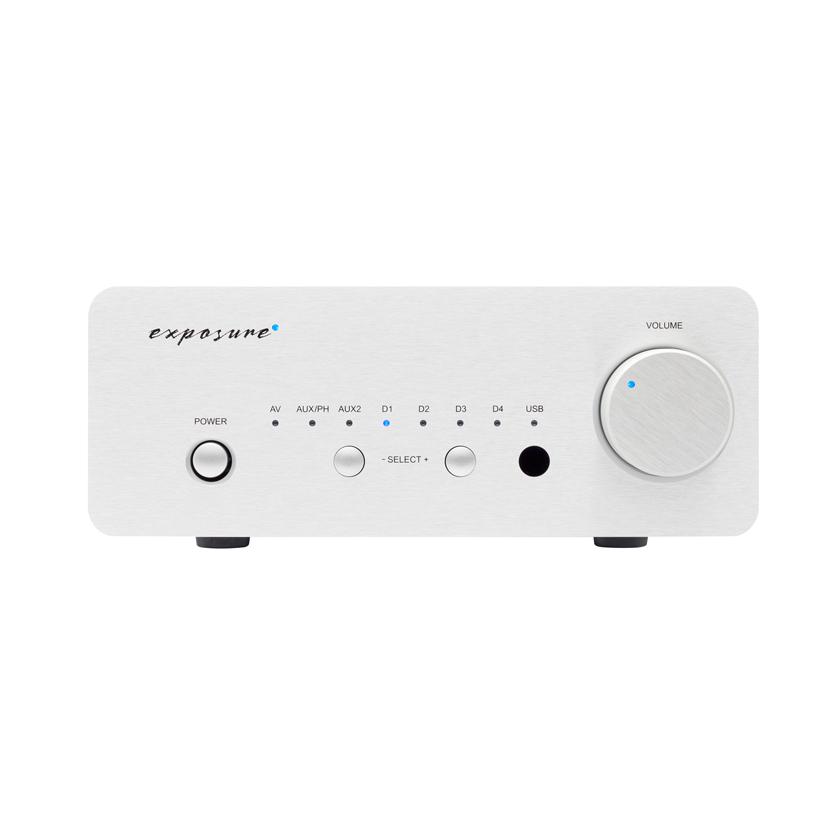

Exposure XM7 Pre-Amplifier

Exposure XM7 pre-amplifier is one of the finest compact components available today. Hand built in England, it is fully featured and continues a long line of award winning Exposure products.

DESIGN

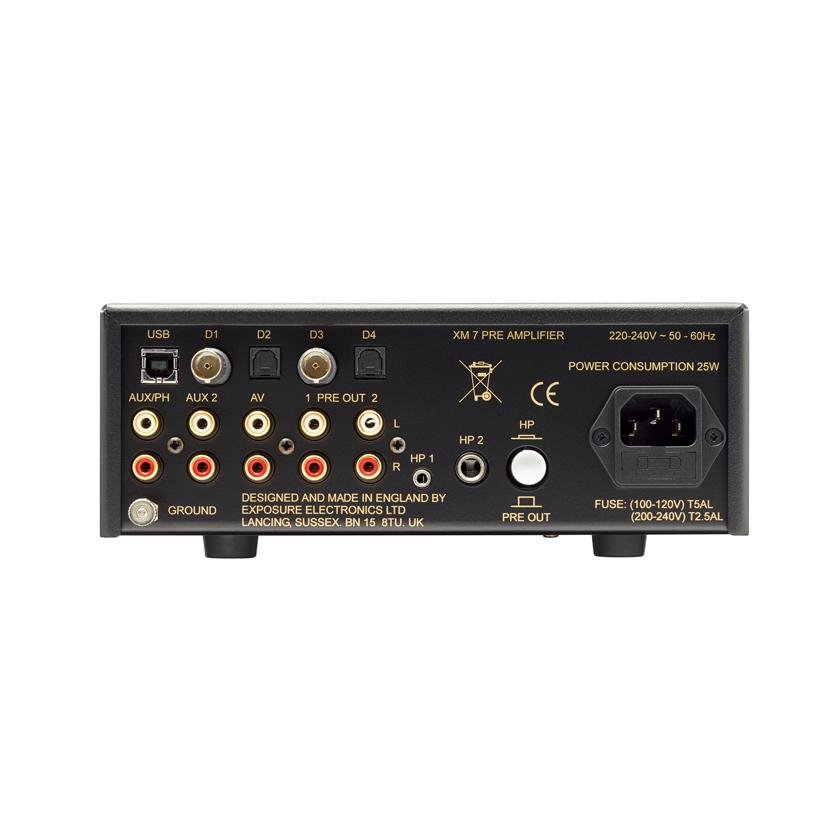

Designed by Tony Brady, the new XM7 was built with the modern audiophile in mind. USB, optical and BNC inputs (typically used in a studio environment) are converted through the high resolution DAC. A quality MM phono-stage will please the most demanding vinyl lover and the discreet headphone amplifier is powerful enough to drive the most demanding headphones. A fixed AV input has been added for use with a home theatre amplifier and everything is powered by a toroidal power supply that could easily drive a power amplifier. There is nothing else like it in this price range.

SYSTEM BUILDING

Perfectly paired with the Exposure XM9 mono amplifiers or other components from the XM Series, the XM7 is the perfect solution for audiophiles in a confined space or those looking for a more discreet solution than a full sized component. The soundstage, timing and musical trademark of Exposure continue the 40 year history of this superb British audio brand.

SPECIFICATIONS

Pre Amplifier Output (input sensitivity / impedance / S/N):

AV input fixed level : 450mV @ 1KHz > 12K ohms S/N > 95dB
AUX/PH input MM : 2.5mV @ 1KHz, 47K ohms S/N > 73dB
Frequency Response : +/-0.5dB 50Hz-20KHz. High pass roll off -1.5dB @ 20Hz
AUX 2 input line : 350mV @ 1KHz > 14K ohms S/N output gain x3.75, +11.5dB
Total Harmonic Distortion : <0.005% at 1KHz : @ 1.3V RMS output
Frequency Response : 20Hz - 20KHz +/- 0.5dB
Signal to Noise Ratio ref 1.3V RMS Output : 1KHz >92dB
Channel Separation @ 20KHz : >60dB

Digital Inputs

SPDIF inputs BNC Coax & Optical : 32 - 192KHz @ 16-24 bits
Total Harmonic Distortion : <0.005% at 1KHz @ 1.3V RMS output
Signal to Noise Ratio ref 1.3V RSM Output : 1KHz : >98dB
USB input : Linear PCM 44K1 - 192KHz @ 16-24 bits DSD x64 (DoP) Asynchronous transfer from host

Headphone Output

Output Impedance : 10 ohms
Maximum Level into 33 ohms : @ 1KHz & 0.1% THD : 5V RMS
Total Harmonic Distortion : @ 2V output, 1KHz : <0.03%
Maximum Level into 330 ohms : @ 1KHz & 0.1% THD : 8V RMS
Total Harmonic Distortion : @ 2V output, 1KHz : <0.01%

General Specifications

Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
Power Consumption : <25W
Dimensions (WxHxD) : 218mm x 89mm x 363mm (inc knob)
Net Weight (unpacked) : 5kg
Gross Weight (packed) : 6kg

Connect the matching half chassis mono power amps for a modern take on a legacy design. Ideal for those with a small space or looking for a discreet solution.
