Soulnote Audio D1N Performance DAC
Product details
Description
Soulnote Audio D1N Performance DAC is designed to deliver unparalleled audio quality and compatibility with the latest high-resolution sound sources. With support for up to 32-bit/768 kHz PCM and 22.6 MHz DSD (DSD512), it ensures that you experience every detail and nuance of your favourite music like never before.
Key Features:
High-resolution audio compatibility: Enjoy the full potential of new high-resolution sound sources across a wide range of PCM and DAD formats, including USB inputs, coaxial digital inputs (2 systems), and AES/EBU connections.
Cutting-edge DAC technology: Equipped with the ES9038PRO, ESS' flagship 32-bit DAC, the D1N takes audio performance to new heights. With a monaural mode that achieves the world's highest specs (DNR140 dB), it delivers an immersive and lifelike listening experience.

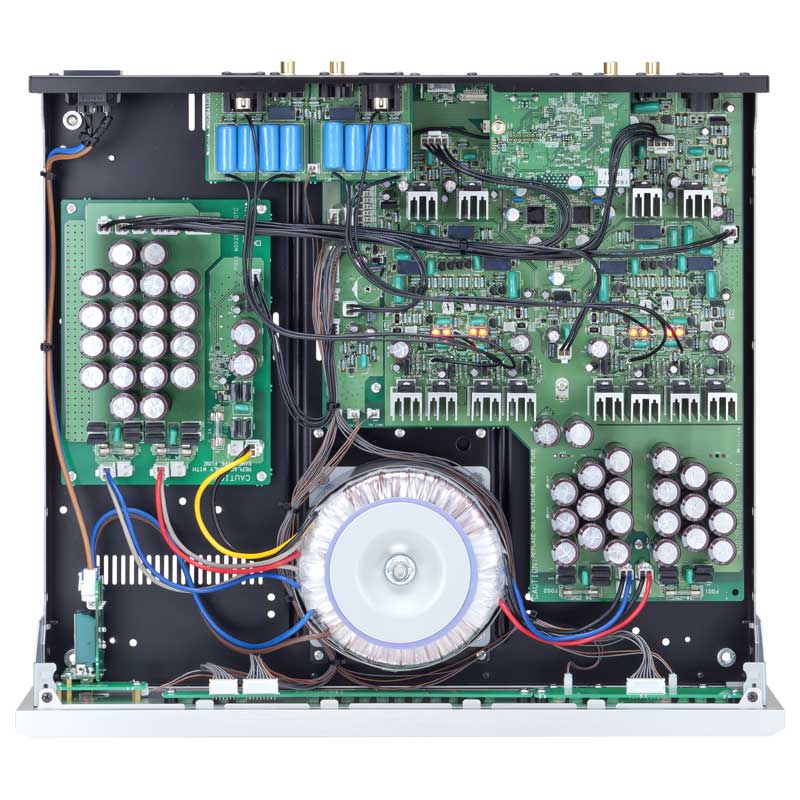

Discrete non-negative feedback amplifier: SOULNOTE's original amplifier design operates in the MHz region and receives up to 120 mA from the powerful DAC current supply. This innovative combination ensures vibrant and energy-filled music playback that surpasses standard OP amplifier circuits.
Specifications:
Input format(USB) PCM, DSD (DoP v1.1 , ASIO)
Input format(Coaxial・AES/EBU) PCM，DSD(DoP v1.1)
Supported sampling frequency(USB) Max.768kHz (PCM) / Max.22.6MHz (DSD)
Supported sampling frequency(Coaxial・AES/EBU) Max.192kHz (PCM) / Max.2.8MHz (DSD64 DoP v1.1)
PCM quantization bit rate(USB) 16bit, 24bit, 32bit
PCM quantization bit rate(Coaxial・AES/EBU) 16bit, 24bit
USB profile USB 2.0, USB Audio 2.0

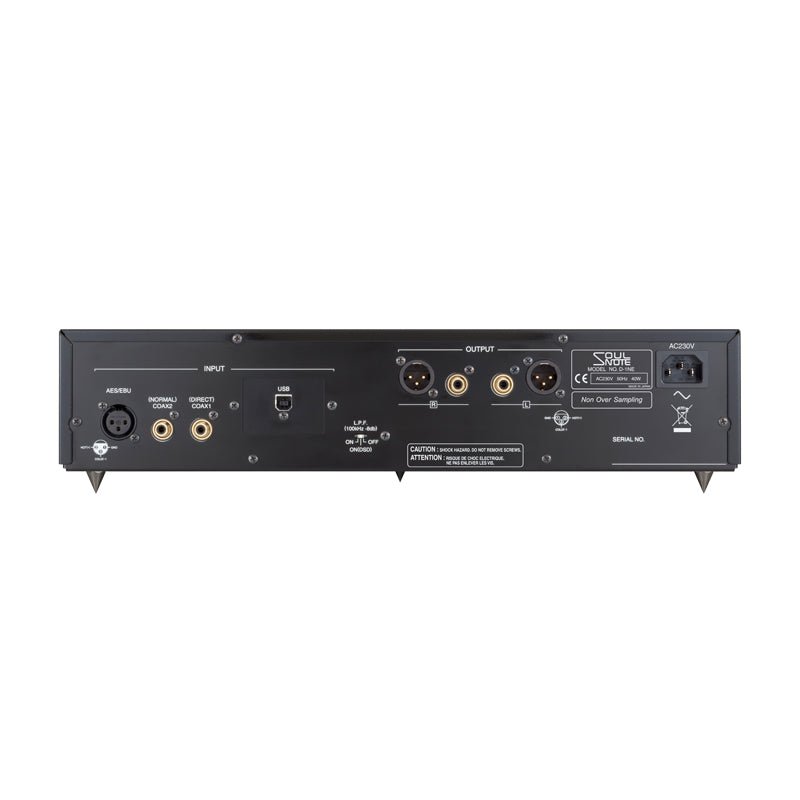

Digital input USB (Type B)、coaxial x2(SPDIF)、AES/EBU
Analog output XLR x1、RCA x1
Analog Output level(XLR) 5.6Vrms
Analog Output level(RCA) 2.8Vrms
Frequency characteristic 2Hz to 120kHz (+0/-1dB）
S/N ratio 110dB
Total harmonic distortion 0.003％
Analog filter Two-dimensional passive
Power voltage 120V AC 60Hz
Power consumption 40W
Maximum external dimensions Main unit: 430(W)×109(H)×379(D)mm
Weight 10kg
Included accessories, Spikes
