無帰還 · No Feedback
Vinyl.
Nothing in the way.
The Soulnote E-1 ver.2 is a perfectly balanced, completely non-NFB phono equalizer built on the circuit layout of the legendary ph1.0.
Soulnote E-1 ver.2 Phono Equalizer
Popular upgrades
Pairs well with
Hand-built in Japan. Every part chosen by ear.
Soulnote E-1 ver.2 Phono Equalizer
無 Nothing in the way
Everyone adds.
Soulnote subtracts.
The best producers know the secret: the art is what you leave out. Soulnote engineers the same way — every stage a conventional design adds to the signal path is a chance to blur the original waveform, so Soulnote removes them, one by one, and tunes what remains by ear.
Between input and output: 3 extra stages, each with a fingerprint. Between input and output: almost nothing.
Every stage does a job — and leaves a fingerprint on the waveform as it passes through.
Fewer hands on the signal. What remains was chosen by listening — part by part.
Designed by subtraction
Less circuit.
More music.
MC gain (0.5mV sensitivity), with a balanced XLR input built for moving-coil cartridges.
RIAA accuracy, held without a feedback loop.
3 to 1,000 ohms — dial in exactly the cartridge you own.
Technical specifications
| Type | Perfectly balanced, discrete, completely non-NFB phono equalizer |
| MC input | 0.5mV sensitivity, 70dB gain |
| MM input | 5mV sensitivity, 50dB gain (button-selected) |
| MC load impedance | 3, 10, 30, 100, 300Ω, 1kΩ |
| MM load impedance | 47kΩ |
| Outputs | Balanced XLR 2.8V (non-NFB buffer), RCA 1.4V |
| RIAA deviation | ±0.3dB |
| Power supply | 260VA toroidal transformer, 10 x 1,000µF filter capacitors |
| Weight | 9.5 kg |
Does the E-1 ver.2 take both MC and MM cartridges?
What loading options are there?
What is the ph1.0 connection?
About the Soulnote E-1 ver.2 Phono Equalizer
Availability: Ships in 10–15 business days.
Vinyl, With Nothing in the Way
The Soulnote E-1 ver.2 is a perfectly balanced, discrete, completely non-NFB phono equalizer that builds on the circuit layout of Soulnote's legendary ph1.0. By refusing to use negative feedback, it maximises transient responsiveness — capturing the speed, energy and micro-detail that make vinyl so compelling, and presenting it with Soulnote's signature vivid, three-dimensional realism. For the analogue listener, this is the sound of getting out of the record's way.
MC and MM, Fully Balanced
The E-1 ver.2 welcomes both moving-coil and moving-magnet cartridges. MC mode offers 70dB of gain (0.5mV sensitivity) with six selectable load impedances — 3, 10, 30, 100, 300 ohms and 1k ohm — plus a balanced XLR input to exploit a cartridge's naturally balanced signal. A button switches to MM mode with 50dB gain (5mV sensitivity, 47k ohm loading). A low-cut subsonic filter tames warps and rumble, while RIAA accuracy holds to within ±0.3dB.
Reference Engineering for the Groove

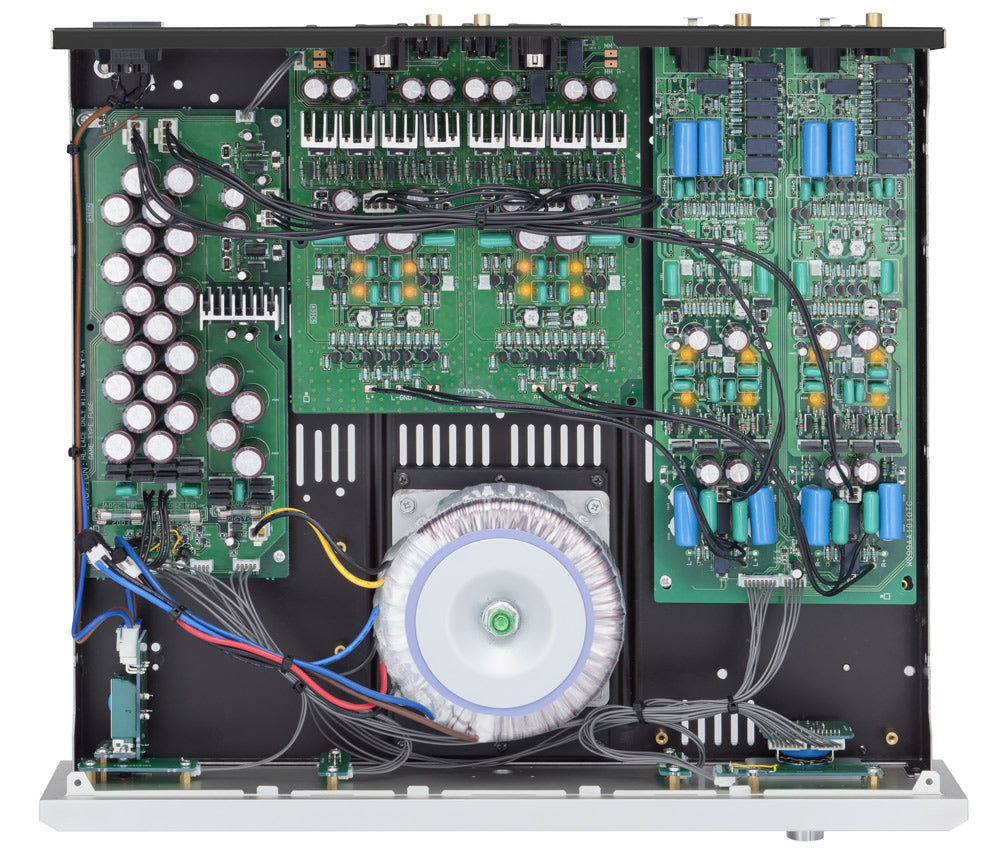

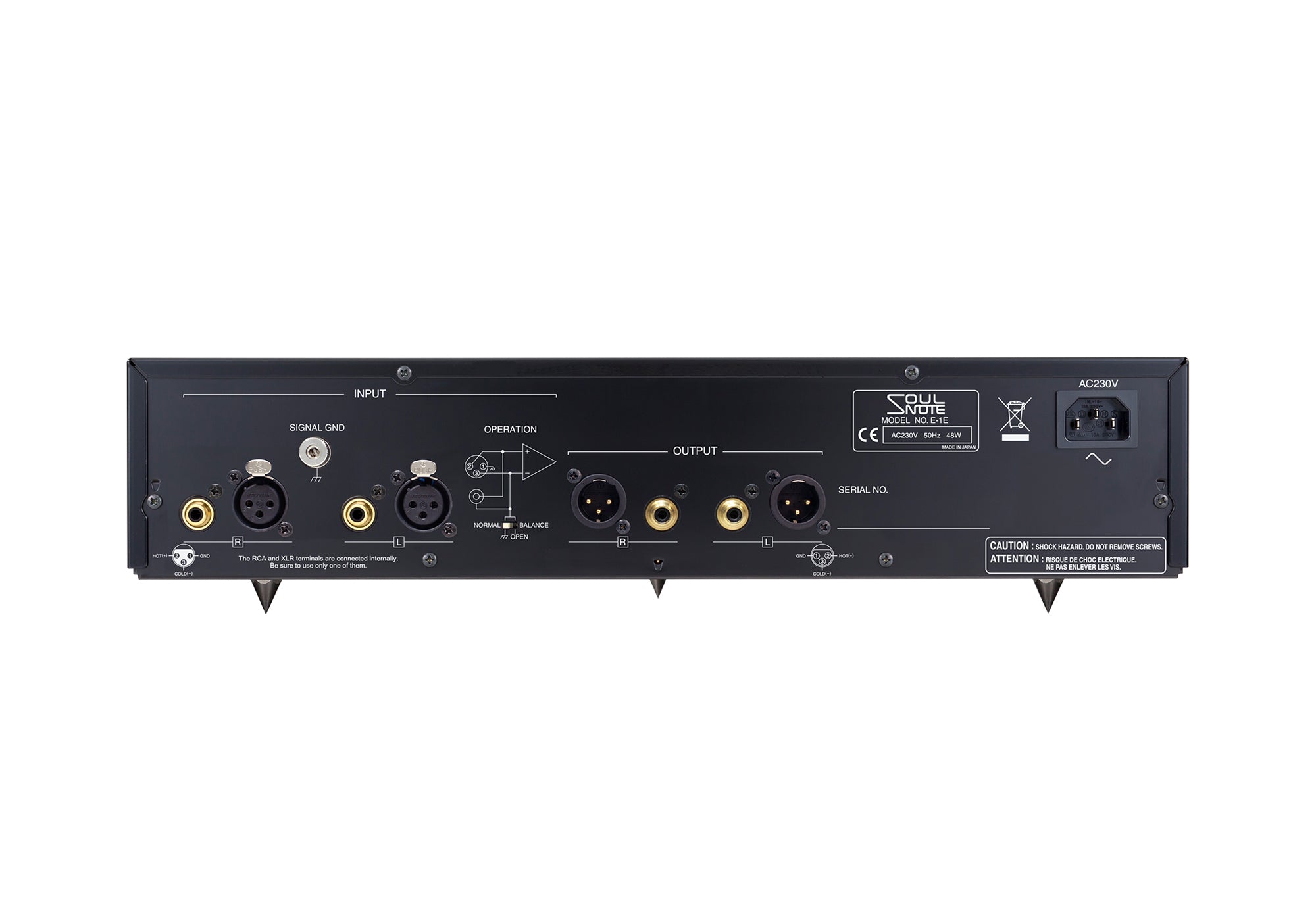

A fully balanced non-NFB buffer amplifier drives the balanced XLR output at 2.8V, with a single-ended RCA output at 1.4V for conventional systems. Underneath sits a 260VA toroidal transformer and ten parallel 1,000µF filter capacitors for a rock-steady power foundation, while direct mechanical grounding via spikes and metallic insulators — fitted as standard — drain vibration away from the delicate phono signal. It's reference-grade analogue engineering, distilled into Soulnote's most accessible phono stage.
Why You'll Love the E-1 ver.2
- Completely non-NFB, perfectly balanced circuit derived from the legendary ph1.0
- MC (70dB) and MM (50dB) support with a balanced XLR input for MC cartridges
- Six selectable MC load settings (3–1kΩ) to dial in any cartridge
- Balanced XLR and single-ended RCA outputs, plus a low-cut subsonic filter
- 260VA toroidal transformer, spiked mechanical grounding and metallic insulators
Frequently Asked Questions
Does the E-1 ver.2 support both MC and MM cartridges?
Yes. It offers 70dB of gain for low-output moving-coil cartridges and, at the press of a button, 50dB for moving-magnet cartridges — with a balanced XLR input available for MC.
What cartridge loading options does it offer?
For MC cartridges you can select 3, 10, 30, 100, 300 ohms or 1k ohm; MM cartridges use the standard 47k ohm loading.
Can I connect it to a balanced (XLR) preamp?
Yes. A fully balanced non-NFB buffer drives the XLR output at 2.8V, and there's also a single-ended RCA output at 1.4V for conventional systems.
E-1 ver.2 Technical Specifications
| Type | Perfectly balanced, discrete, completely non-NFB phono equalizer |
| MC input | 0.5mV sensitivity, 70dB gain |
| MM input | 5mV sensitivity, 50dB gain (button-selected) |
| MC load impedance | 3, 10, 30, 100, 300Ω, 1kΩ |
| MM load impedance | 47kΩ |
| Outputs | Balanced XLR 2.8V (non-NFB buffer), RCA 1.4V |
| Input | Balanced XLR for MC; low-cut subsonic filter |
| RIAA deviation | ±0.3dB |
| Power supply | 260VA toroidal transformer, 10 x 1,000µF filter capacitors |
| Power consumption | 48W |
| Dimensions (W x H x D) | 430 x 109 x 409 mm |
| Weight | 9.5 kg |
