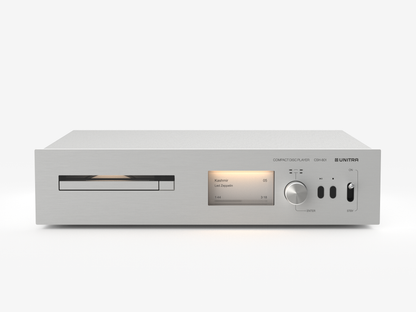

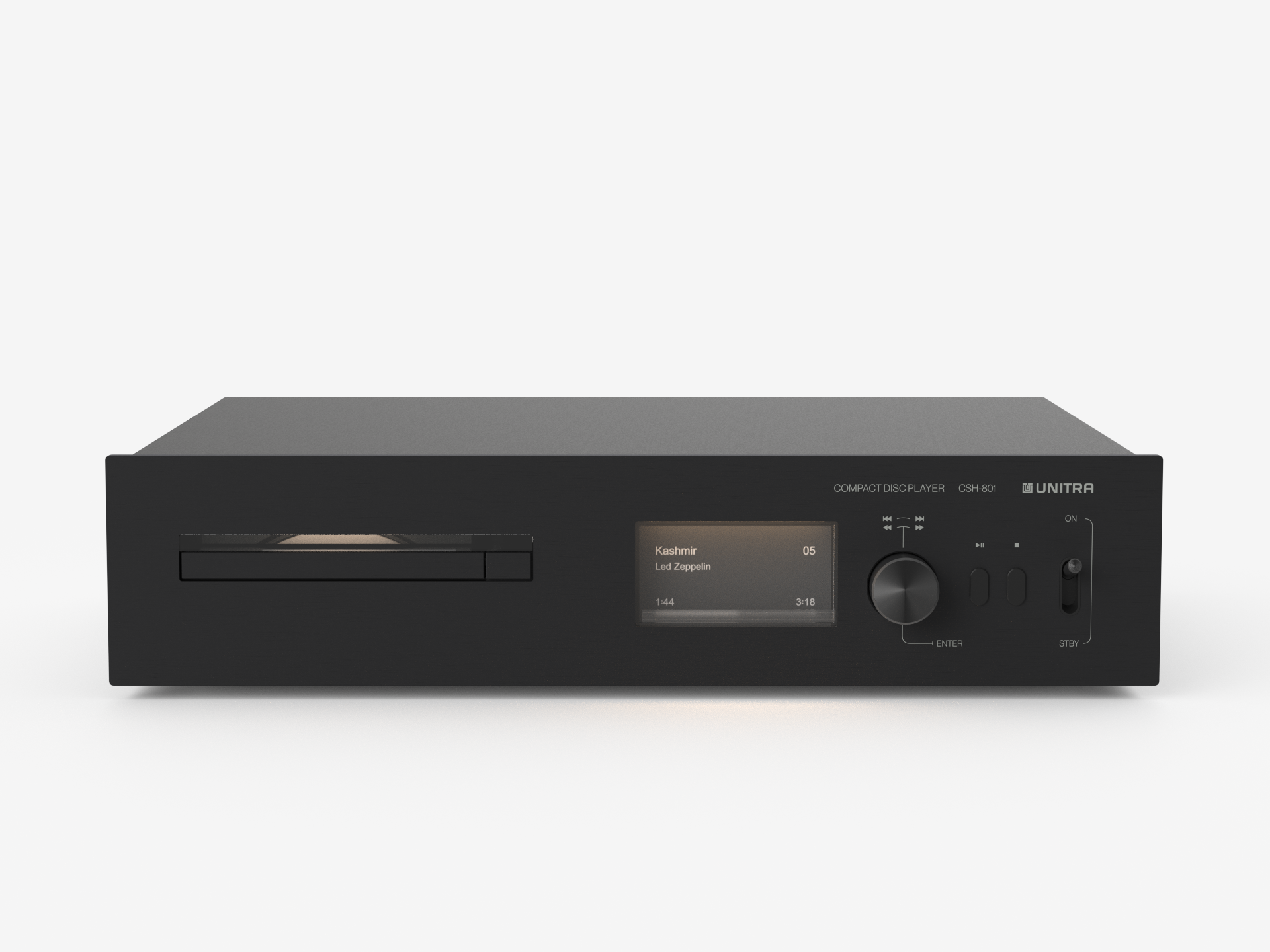

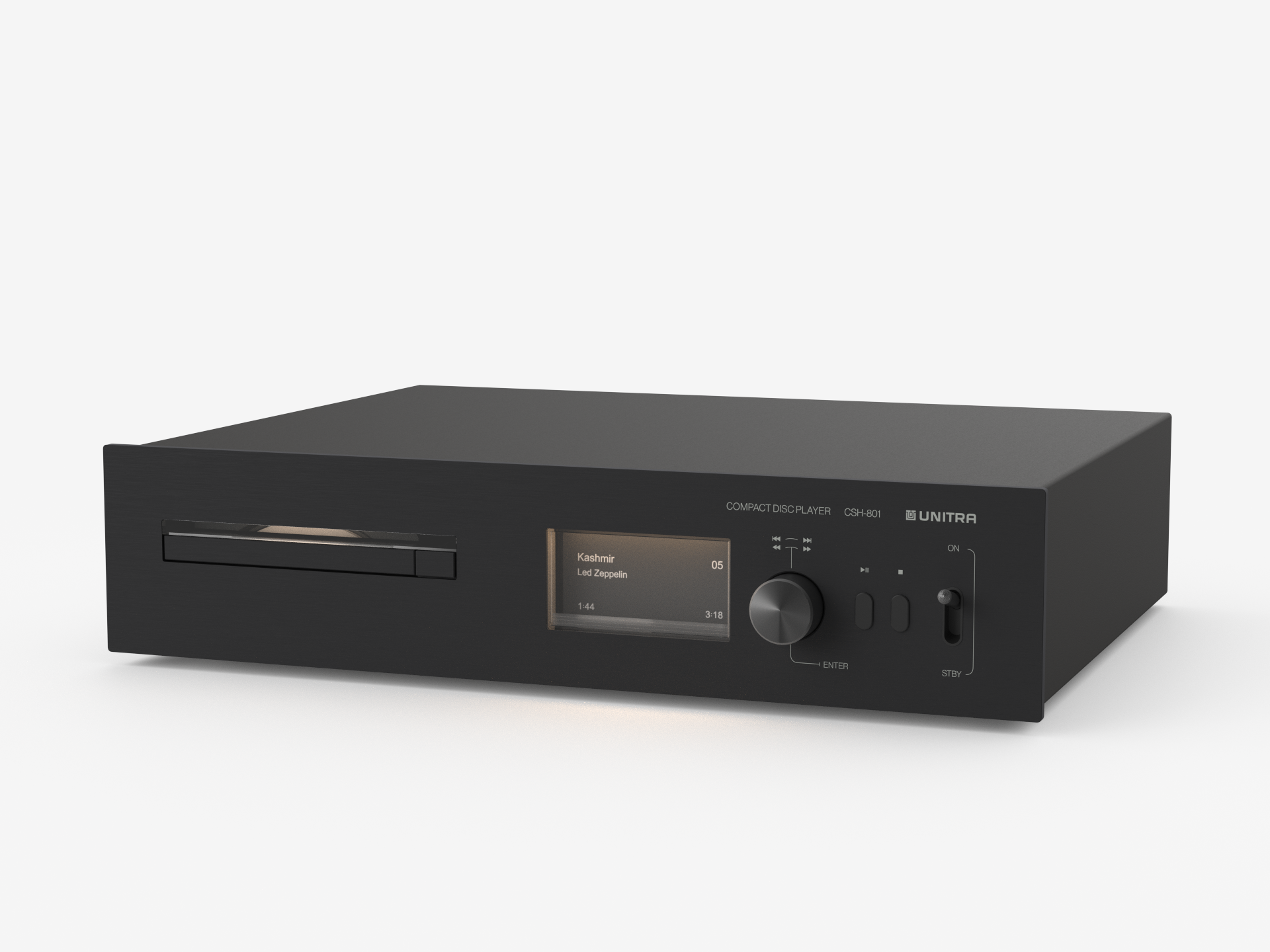

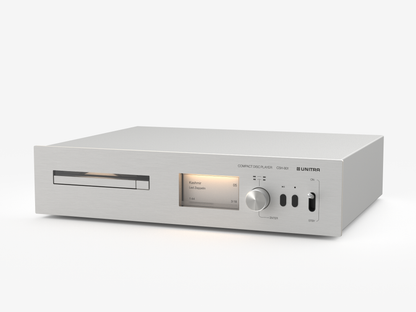

Unitra CSH-801 CD player with DAC and transport function
CD player with DAC and transport function. It features a design to match the styling of Unitra's new line of devices, and a unique interface with a backlit E Ink display with a pleasant, natural card look. The look is complemented by aluminum front panel trim and a CD viewfinder. A built-in DAC allows the player to be connected directly to an analog amplifier, and digital outputs allow optional communication with an external converter.

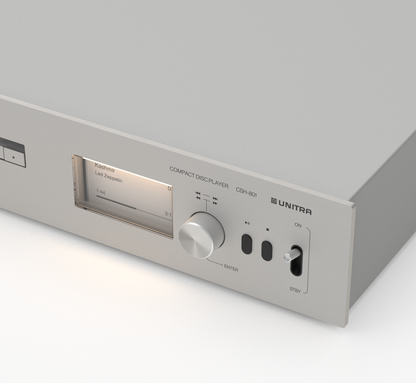

Timeless Design
Tracing its design to the 1970s, the player uses audiophile-grade components housed in a metal chassis with an E Ink display and aluminum finish.

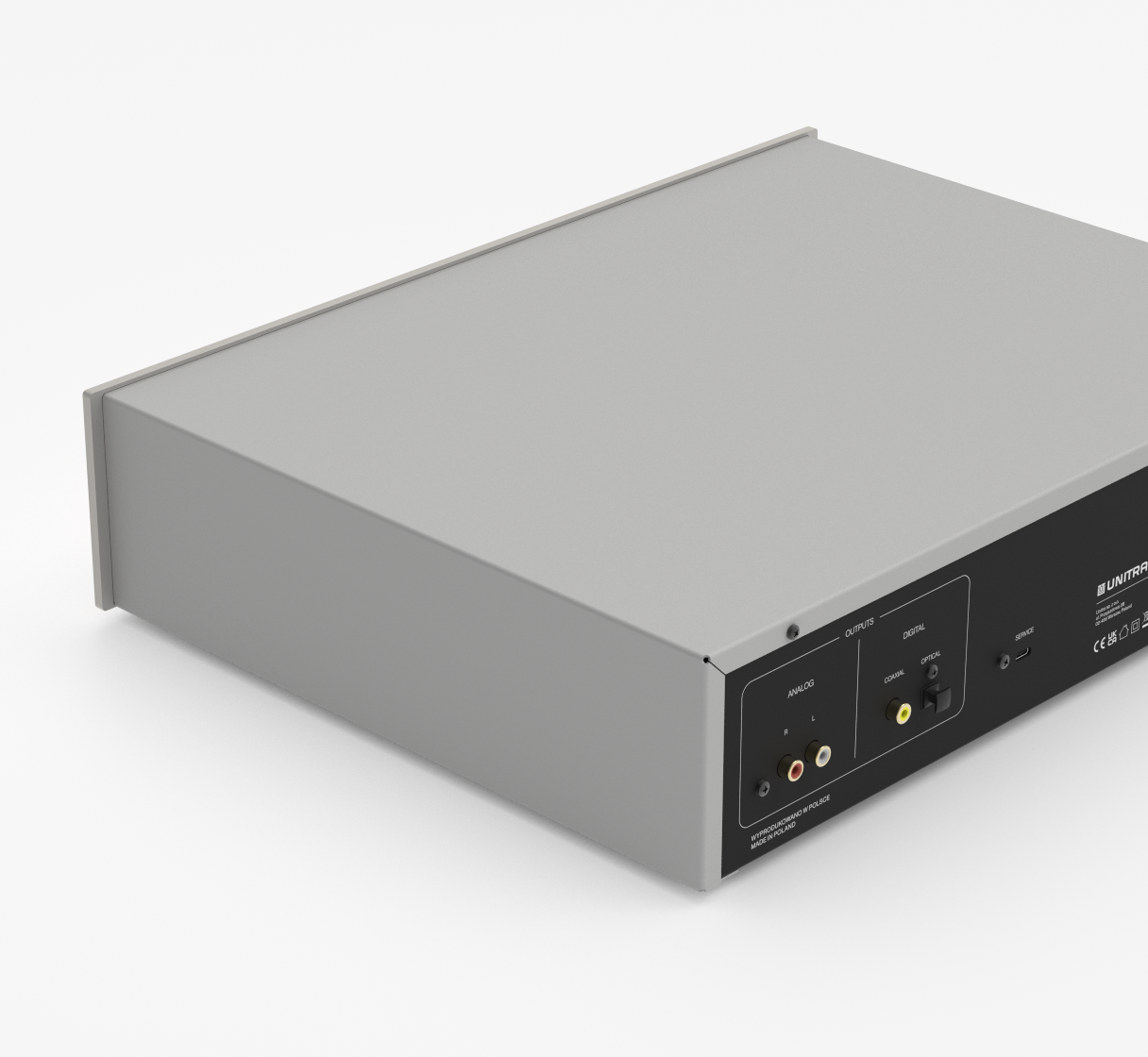

Timeless Durability
The player’s premium-grade components and all-metal chassis provide for longer service life.

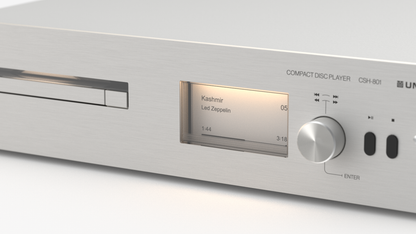

E Ink Display Interface
The large 3.7 inch high-resolution E Ink display offers excellent readability.

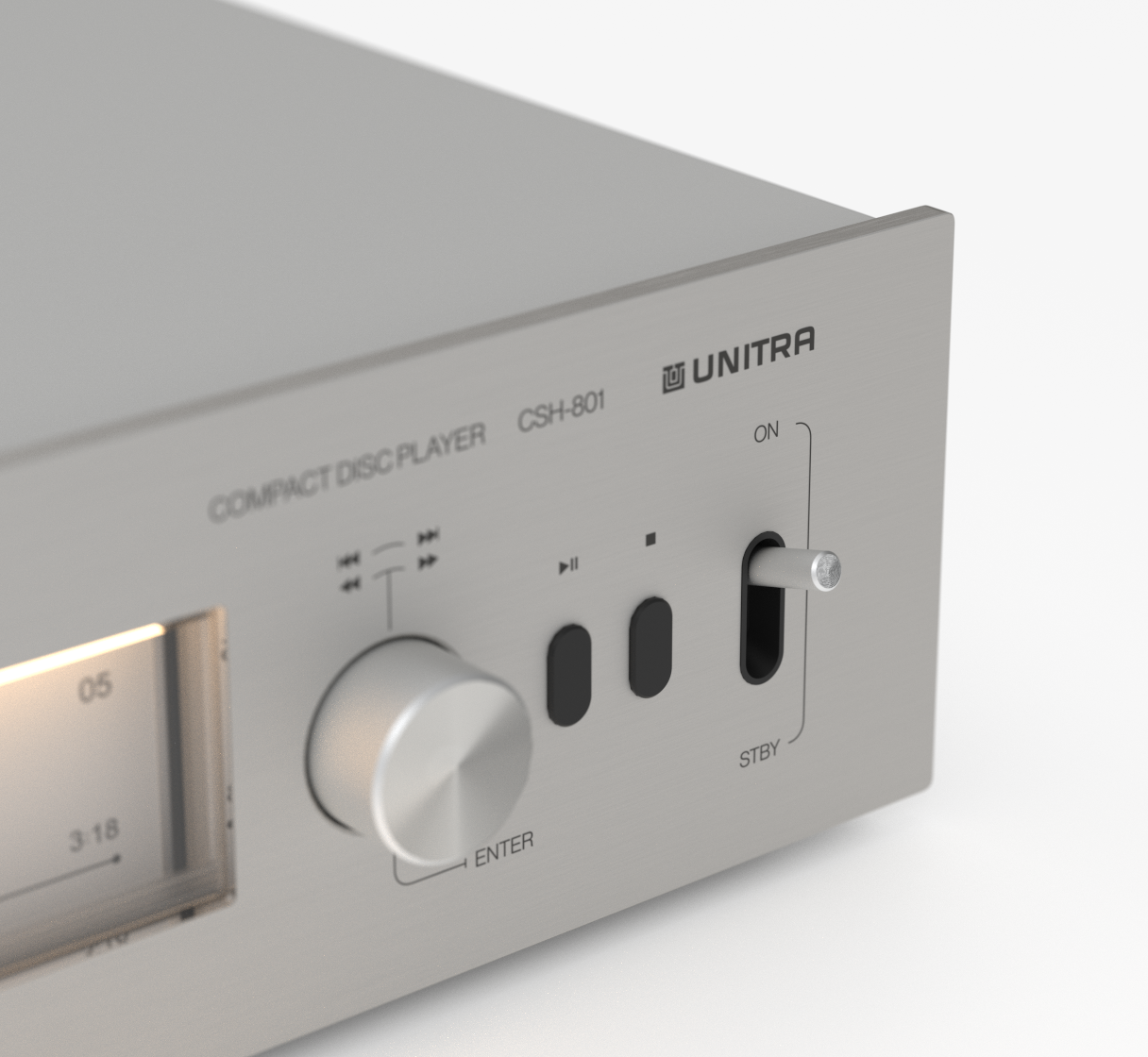

Automated Toggle Switch
Unitra’s patented solution allows the unit to be powered on/off from with the switch or using the remote controller.

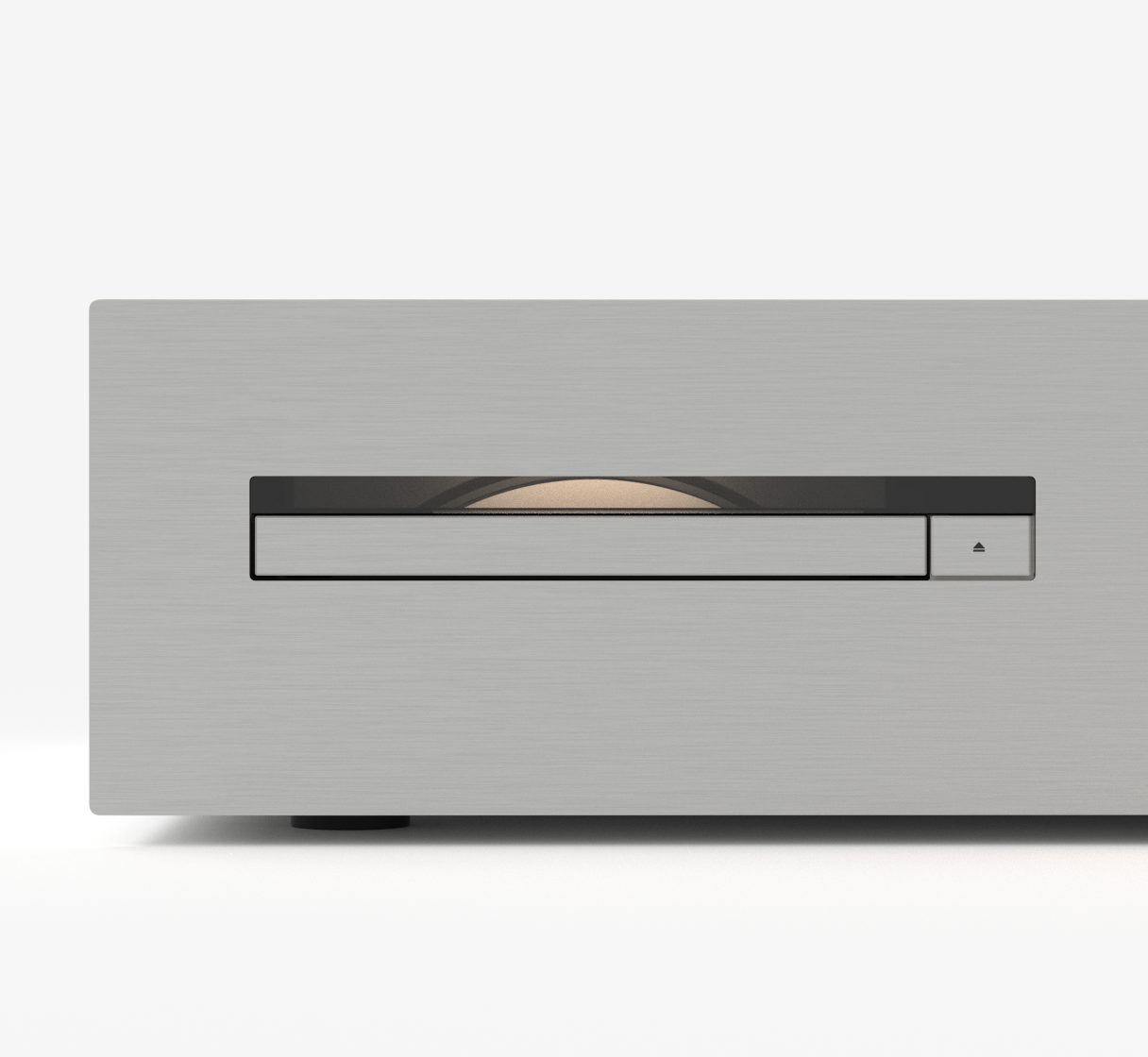

CD Viewport
The unique backlit CD viewport seamlessly blends into the unit’s analog-style appearance.
Hi-End DAC"
The player has a high-performance 32-bit DAC with a sampling rate of 384 kHz (PCM) for optimum decoding of CD-Audio digital recordings.

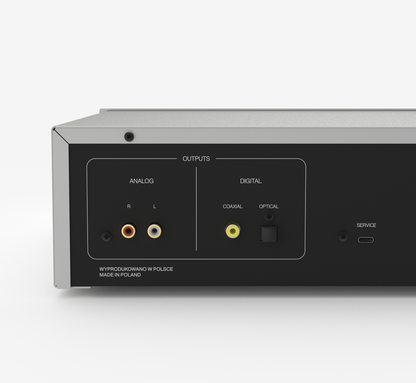

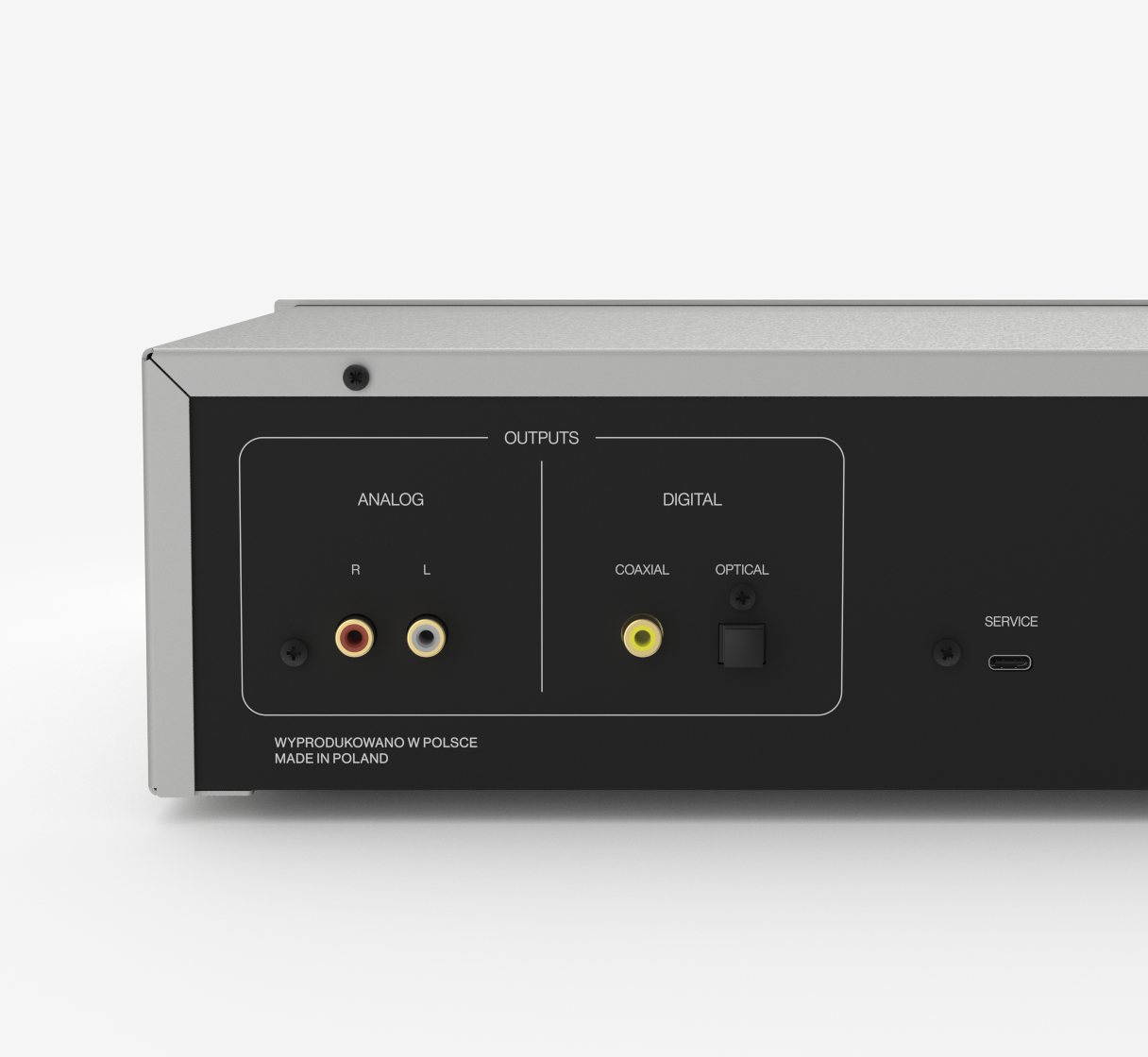

Transport Functionality
The player can operate as a CD transport, delivering the CD data stream to its digital outputs.
Product specification
General
Weight
6.9 kg (15.2 lbs)
Dimensions
440 × 355 × 105 mm (17.3 × 14 × 4.1 in)
Power Supply
230 V AC, 50/60 Hz
Power Consumption
9 W
Standby Power Consumption
< 0,5 W
Supported Disc Formats
CD / CD-R / CD-RW
Supported Audio Formats
CD-DA (CD-Audio), WAVE
Display Interface
Diagonal Size
3,69”
Resolution
480 x 280 px
Number of Colors
Monochrome
Backlight
Yes
Drive
Media supported
CD / CD-R / CD-RW
Supported audio formats
CD-DA (CD-Audio)
Sampling frequency
44,1 kHz
Dynamics
96,33 dB
Output Parameters
Frequency Response
7 Hz - 20 kHz
THD + N
0.004% (1 kHz, 0 dBFS)
Dynamic Range
92 dB
RMS Output Level
2.1 V RMS
MAX Output Level
3 V
DAC
32-bit, 16-bit data
Channel Separation
90 dB

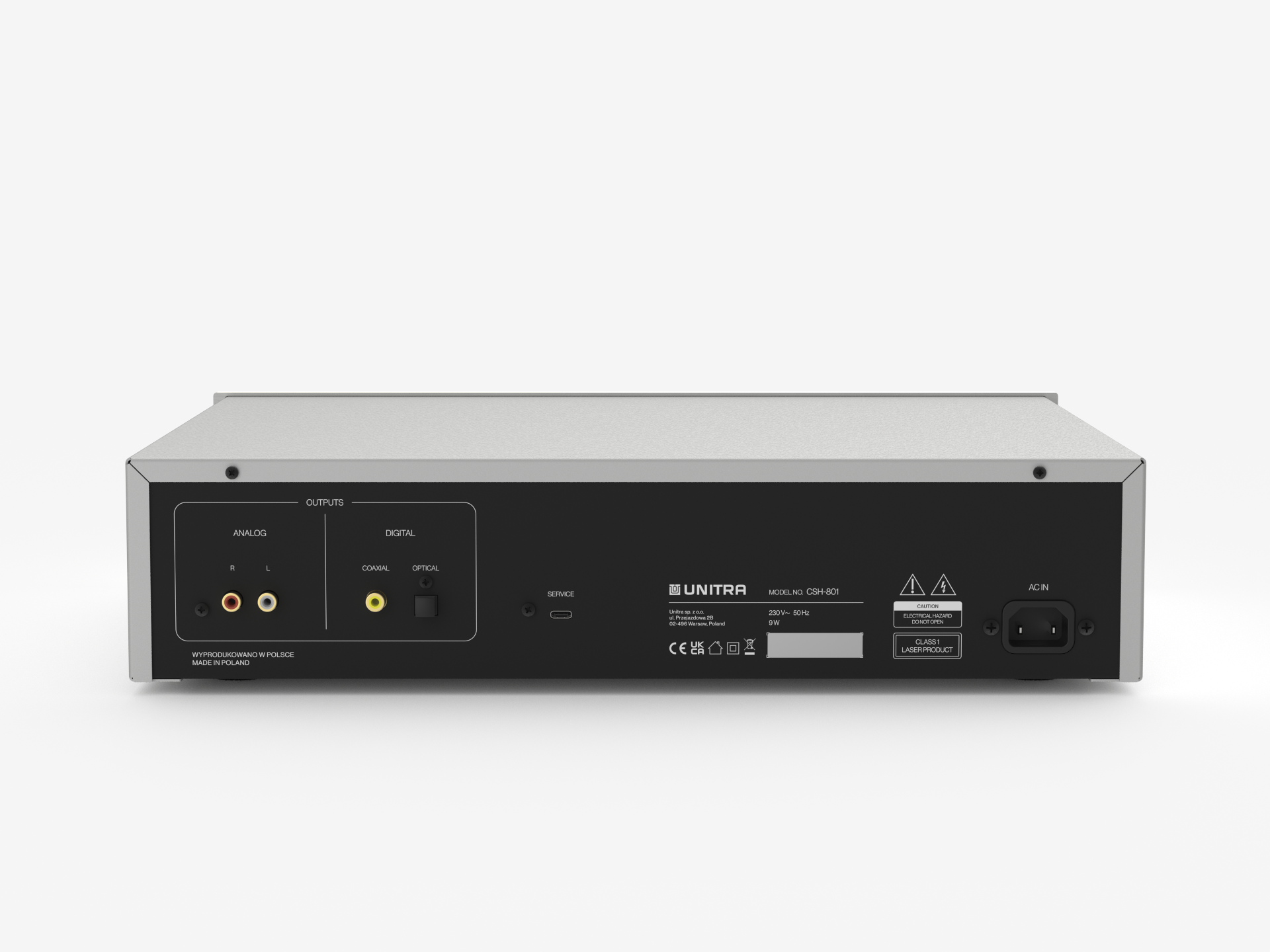

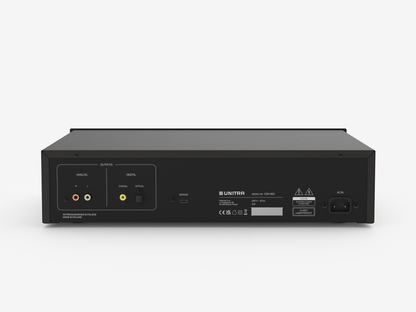

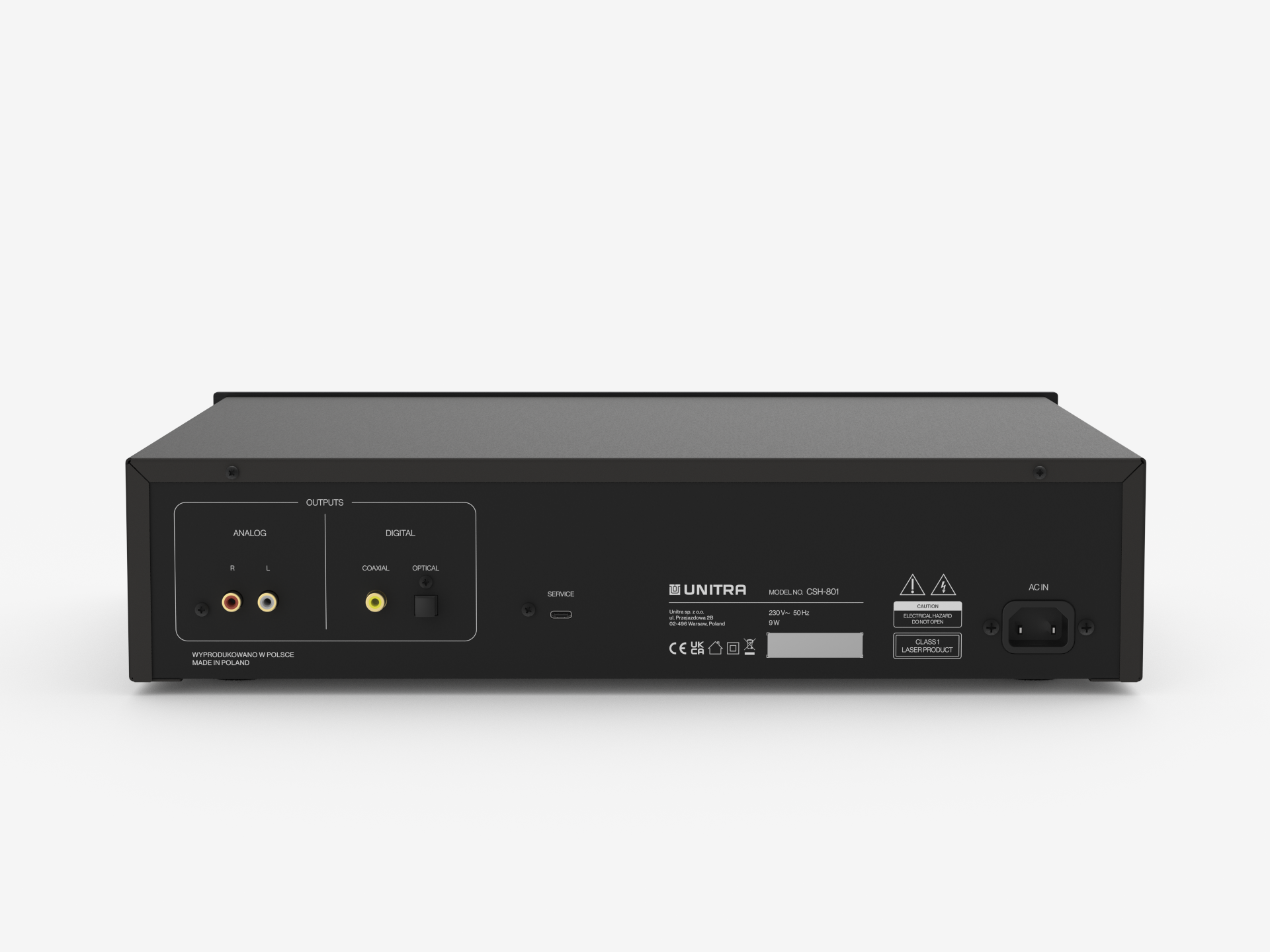

Outputs
Analog
RCA
Digital
Optical
Features
Disc Playback
Repeat All, Repeat One, Shuffle, Play/Pause, Stop, Next/Previous Track, Fast Forward/Rewind ×5/×10/×15
Data Display
Album Title and Artist, Album Total Time, Number of Tracks, Artist Details, Track Details, Track Time, Playback Status, Time
Supported menu languages
Polish, English, French, German
Remote Control
Yes
Package Contents
CSH-801 CD Player, power cord, remote controller with battery
