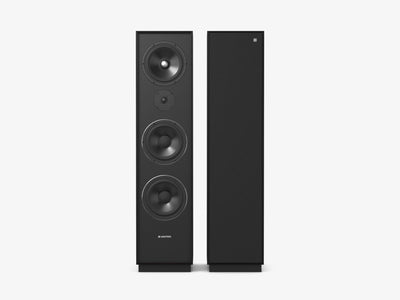

Unitra ZGZ-801 Tower Speakers
Popular upgrades
Pairs well with
ZGZ-801 reference floorstanding loudspeakers are engineered for uncompromising performance, featuring a meticulously crafted 75-liter closed-box design that delivers precise, controlled bass and exceptional acoustic stability. Inside, custom low- and midrange drivers with rigid aluminum baskets and lightweight cellulose diaphragms work within a sophisticated 3-way architecture and advanced crossover system to ensure outstanding clarity, tonal accuracy, and seamless frequency integration. With their high efficiency, dynamic presentation, and smooth impedance characteristics, the ZGZ-801 loudspeakers pair effortlessly with virtually any amplifier, making them an ideal choice for audiophiles seeking both versatility and true high-fidelity sound.
Closed-box design
We used a fully enclosed solid cabinet with an internal volume of 75 liters and a 3-way audio path system with dual woofers. This design allows for a fast impulse response, so we can enjoy clear and unstretched sounds, which is especially noticeable at low frequencies.
The closed design also has the advantage of a gently sloping bass response, making the bass more natural and pleasing to the ear. The enclosure used also gives a wide range of maneuverability in terms of positioning the set in the listening room due to the absence of characteristic coloration in the bass section, often heard in the most popular designs. Thanks to the high dynamic range, our set will play extremely clearly both at high volume and in quiet evening playback.
High efficiency and exceptional vocals
The 91 dB efficiency (measured in an anechoic chamber) resulting from the use of two drivers in the lowest band and high-efficiency drivers in the mid and high bands gives it the ability to work effectively with a wide range of amplifiers, both solid-state and tube.
The midrange driver used operates at high power handling and has a built-in phase equalizer. The division frequencies have been selected so that they are not in the range most sensitive to the human ear. This allows us to enjoy a very clear and faithful reproduction of vocals.
Smooth impedance characteristics
Smooth impedance characteristics with no local low extremes, making it possible to connect to amplifiers sensitive to changes in load impedance.
Hi-End Crossover
Advanced passive crossover with a 3rd order tweeter, midrange and 2nd order woofer path design with Zobel circuit and band-pass filter. We used top-notch components, including air coils and metallized polypropylene capacitors, which enhance the linearity of the frequency response with no visible divide in the bandwidth.
Transducers made especially for us
Custom low and midrange drivers with aluminum baskets of increased rigidity with a lightweight cellulose diaphragm. All transducers were made in Poland and Norway according to Unitra engineers' instructions. We used two 8-inch woofers with lightweight cellulose diaphragm and aluminum basket. An 8-inch driver with a woven polypropylene diaphragm and phase equalizer is responsible for the midrange, and the whole is completed by a 27mm textile dome.
Double box design
The design of the enclosure is based on an uncommon on the market "box-in-box" arrangement for greater rigidity of the structure. The resulting weight of the set of more than 70 kg has a significant impact on the reduction of vibrations of the enclosure walls and parasitic resonances generated as a result, which positively translates into sound quality.
Finishing with natural materials
The enclosures are finished with natural wood veneer made from selected leaves and hand oiled. In addition to the standard black grilles, we also have more classic ones, for which we used Polish linen.
Product specification
Acoustic Parameters
Frequency Response
52 Hz to 20 kHz (±3 dB)
Sensitivity
91 dB
Impedance
6 Ω
Power Rating
190 W RMS
System
3-way
Crossover Frequencies
700 Hz / 2,8 kHz
Enclosure Type
Sealed
Connector Type

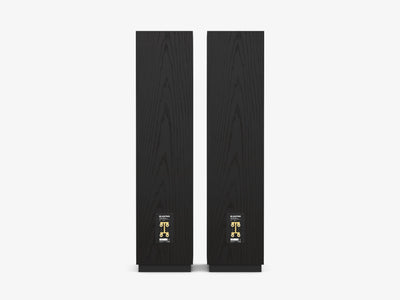

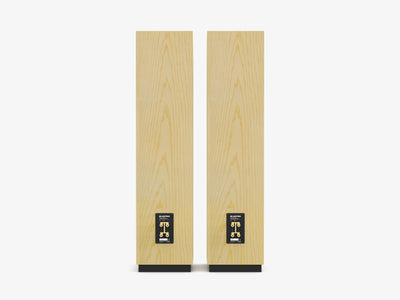

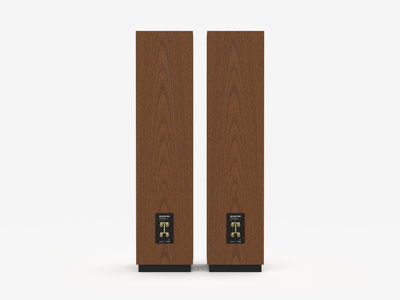

Dual (bi-wire / bi-amp)
Woofer
2 × 8" paper cone
Midrange
8" polypropylene cone
Tweeter
27 mm textile dome
Product Specifications
Dimensions
280 × 328 × 1188 mm (11 × 12.9 × 46.8 in)
Weight
74 kg (163 lbs)
Grille
Black acoustic fabric or natural linen
Finishes

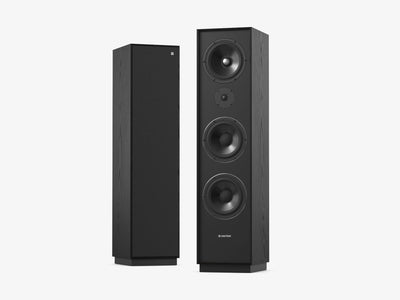

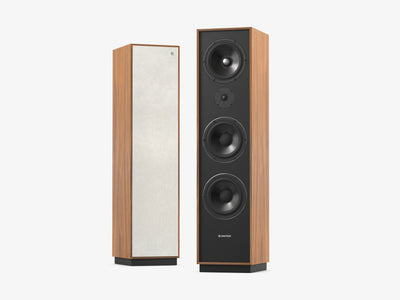

Real wood veneer: Black Ash or American Walnut
Material
Two layers of MDF (total thickness: 20 mm / 0.8 in)
