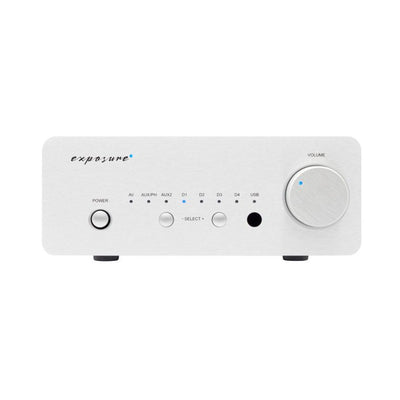

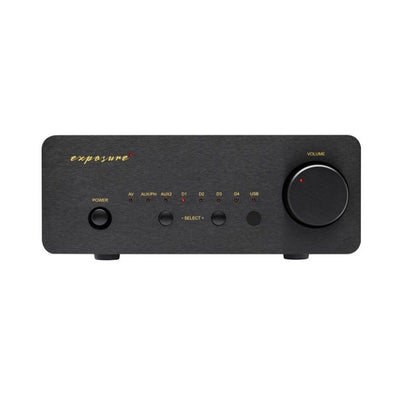

Exposure XM5 Integrated Amplifier

$2,299.00

Notify me when back in stock

Exposure XM5 Integrated Amplifier is the compact heart of any high fidelity system. Hand made in England, the amplifier includes a HiRes DAC, MM Phono, Fixed AV, USB, Optical and BNC inputs.

At 60 watts per channel (8 ohms) it will drive virtually any loudspeaker. Volume and switching is controlled with the included remote control. A perfect solution for high fidelity music lovers with confined space or those looking for a discreet solution. The soundstage, timing and musical qualities of this amplifier continue the 40 year history of Exposure performance.

This is a well featured half chassis integrated amplifier. Perfect for those who are streaming and playing vinyl. Trademark Exposure sound, dynamics and great bottom end.

Specifications

Speaker Output Specifications
  • Power Output (1KHz) : 60 Watts per channel into 8 ohms
  • Total Harmonic Distortion : <0.01% at 1KHz, rated power
  • Frequency Response : 20Hz - 20KHz +/- 0.5dB
  • Channel Separation : >60dB @ 1KHz AUX 2 input open (shorted > 80dB) >40dB @ 20KHz AUX 2 input open (shorted > 63dB)
Pre Amplifier Specifications
  • Pre Amplifier Output : Gain +12dB
  • Frequency Response : 20Hz - 20KHz +/- 0.5dB
  • Total Harmonic Distortion : @ 1KHz: & 1V output : 0.002%
  • Signal to Noise Ratio ref 1KHz & 1V output : >100dB, A weighted
  • Channel Separation @ 20KHz : >62dB input shorted > 41dB input open AUX 2 input

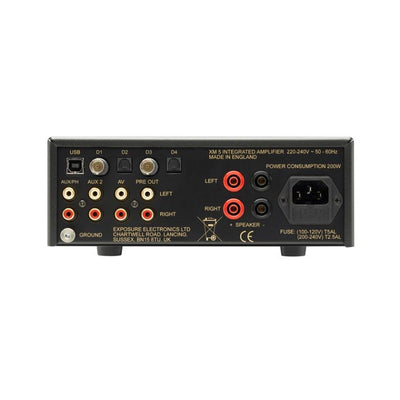

Input Specifications
  • AV input fixed level : 450mV @ 1KHz > 12K ohms S/N > 100dB
  • AUX/PH input MM : 2.5mV @ 1KHz, 47K ohms S/N 70dB
  • AUX 2 input Line : 350mV @ 1KHz > 14K ohms S/N > 100dB
  • SPDIF inputs BNC Coax & Optical : 32 - 192KHz @ 16-24 bits
  • USB input : Linear PCM 44K1 - 192KHz @ 16-24 bits DSD x64 (DoP) Asynchronous transfer from host
General Specifications
  • Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
  • Power Consumption : 200W both channels driven, 8 ohms load
  • Dimensions (WxHxD) : 218mm x 89mm x 363mm (inc knob)
  • Net Weight (unpacked) : 5kg
  • Gross Weight (packed) : 6kg
