Exposure 5510 Integrated Amplifier
Product details
Description
Product Description

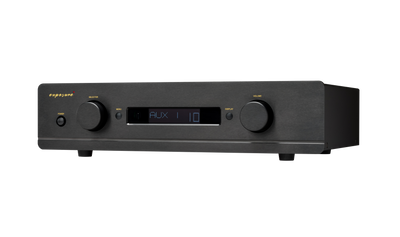

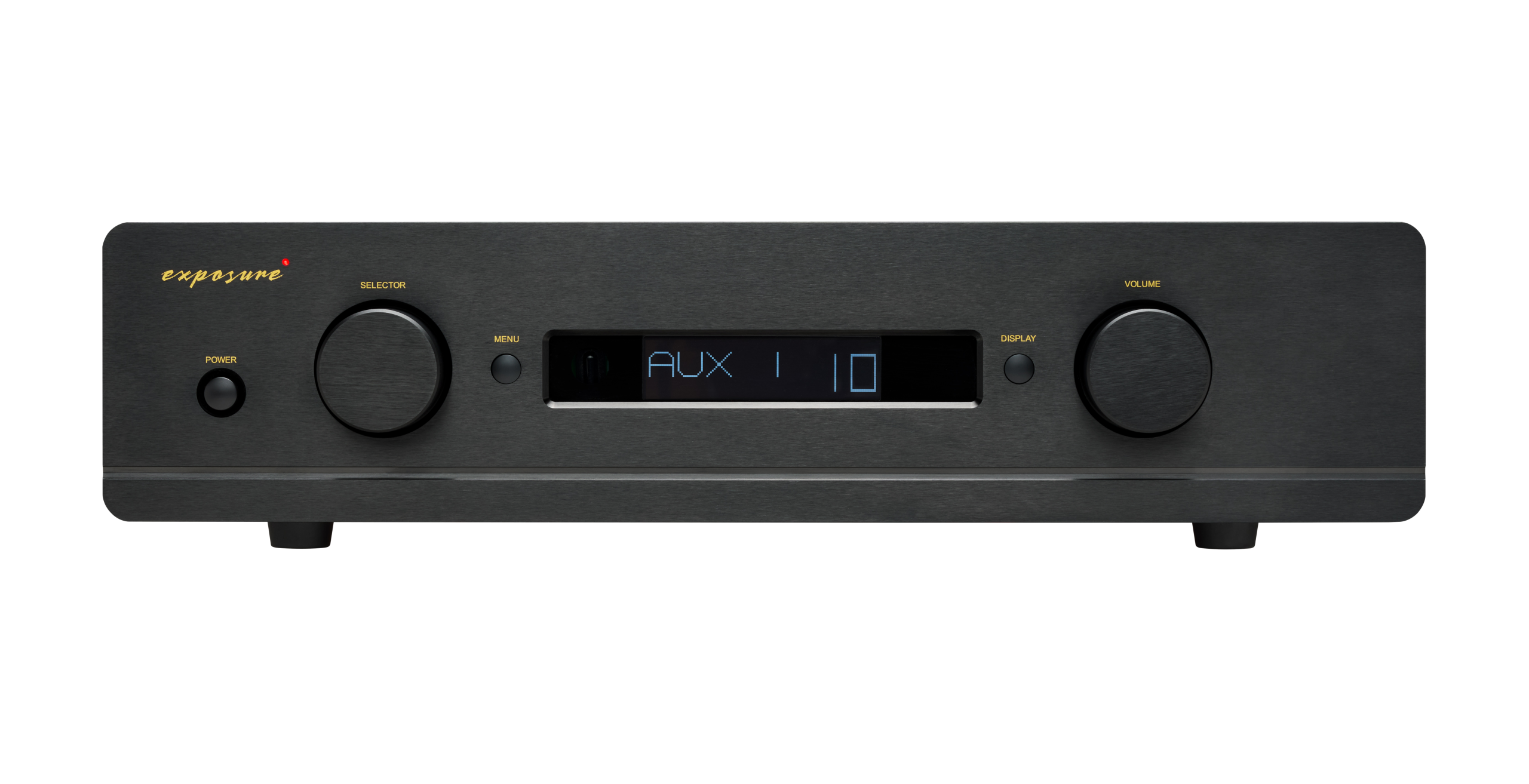

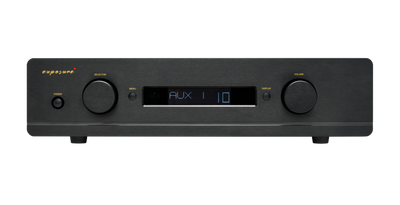

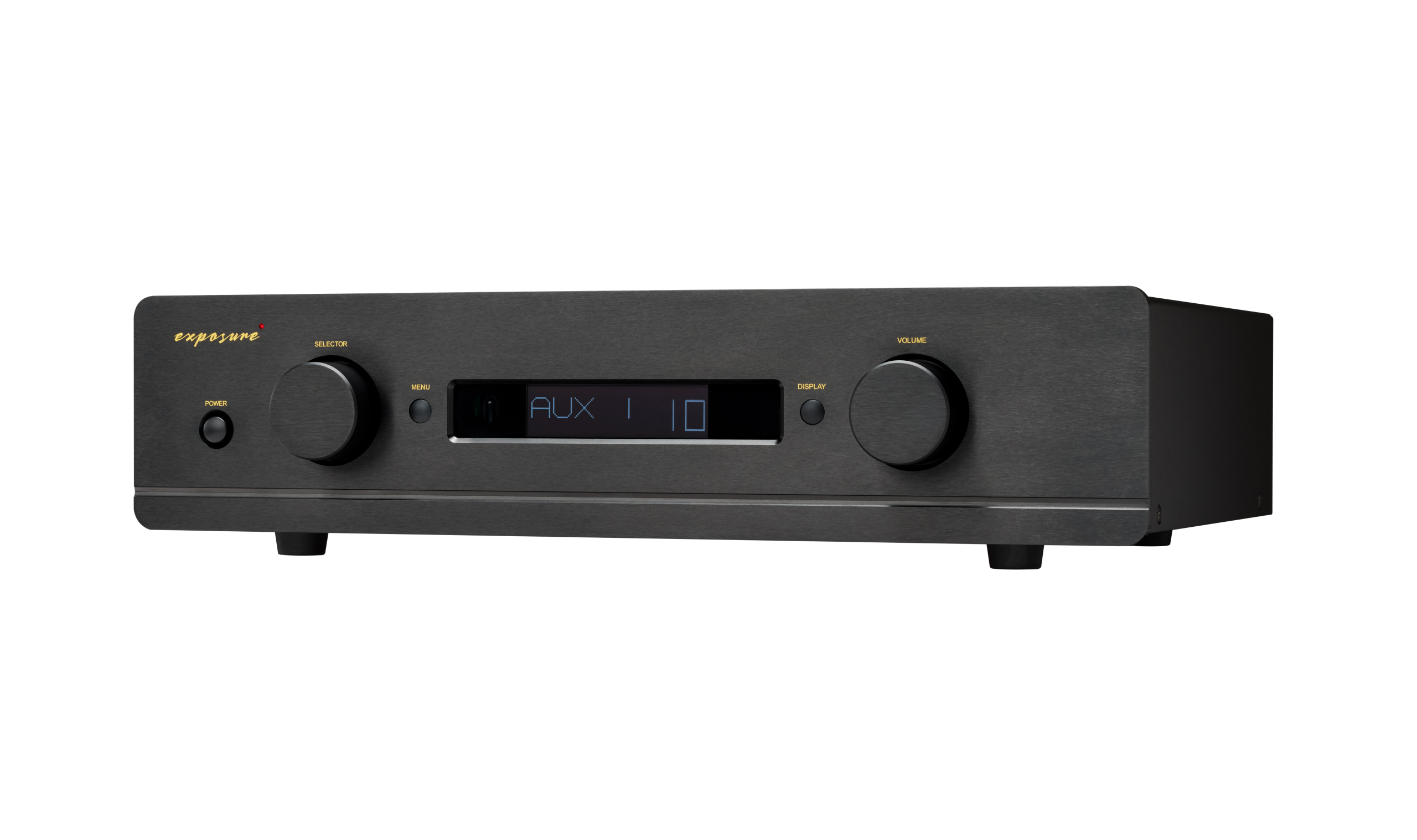

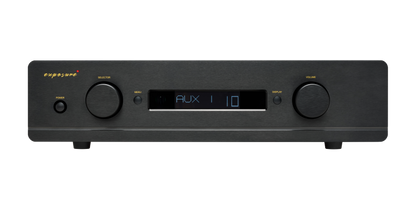

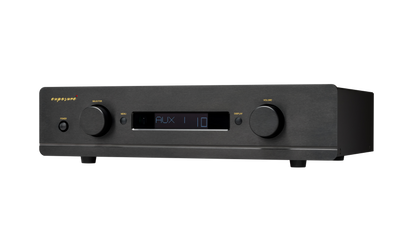

Elevate your listening with the Exposure 5510 integrated amplifier, the new flagship from Exposure Electronics. Engineered to deliver 120 W per channel into 8 Ω, it’s designed to drive even demanding loudspeakers with confidence and musical finesse.
Built for flexibility, the 5510 features six line-level inputs plus the option to install one modular board—for MM, MC, or DS phono or a DAC module. This modular architecture lets your system grow without replacing the core amplifier.

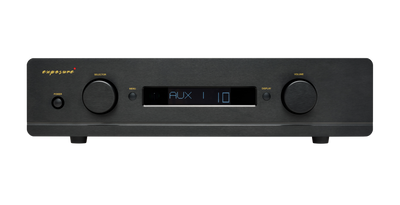

Inside, a custom toroidal transformer with hum shielding minimizes noise, while the rigid aluminium chassis suppresses resonance. A bright white OLED display with adjustable brightness and auto-off mode gives clear feedback without distraction.

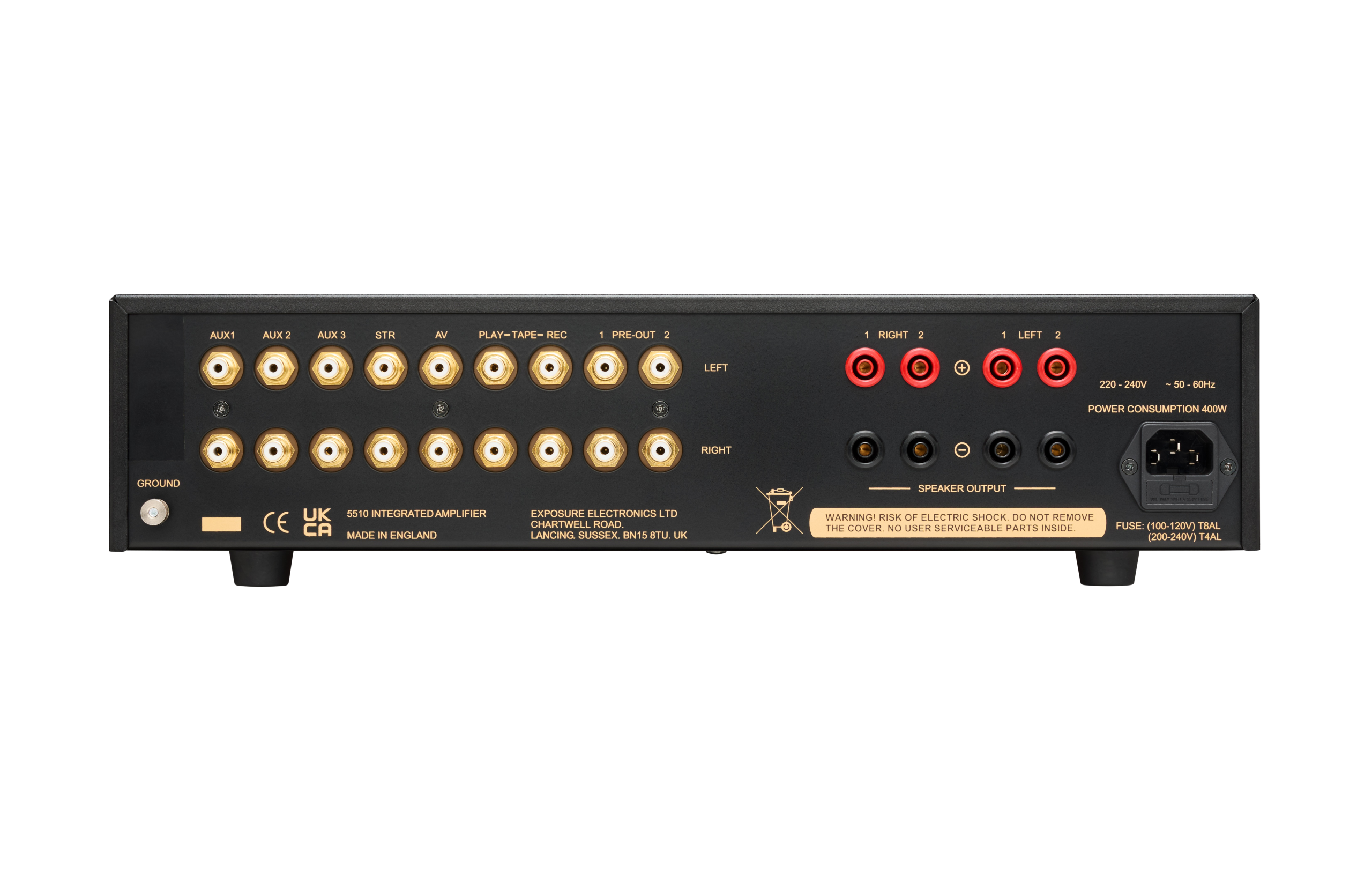

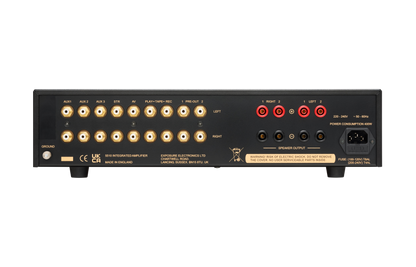

With pre-outs, tape loop (fixed), remote control, and a refined, understated appearance in black, the 5510 delivers premium performance in a single, elegant package.
Specifications
Feature | Specification |
---|---|
Power Output | 120 W per channel into 8 Ω (1 kHz) |
Frequency Response | 20 Hz – 20 kHz ± 0.5 dB |
Signal-to-Noise Ratio | > 100 dB (A-weighted, ref 1 kHz at rated output) |
Channel Separation | > 60 dB @ 20 kHz |
Total Harmonic Distortion | <0.02% (at rated power, 8 Ω, 1 kHz) |
Power Consumption | < 400 W (both channels, 8 Ω) |
Supply Voltage | 110/120 V or 220/240 V (factory configured) |
Dimensions (H × W × D) | 115 mm × 440 mm × 300 mm |
Net Weight | 12 kg |
Gross Weight | 14 kg |
Inputs | 6 × line-level RCA (or 5 + optional phono/DAC board) |

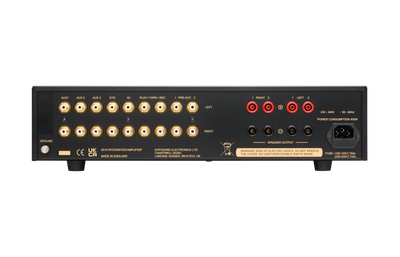

Outputs & Extras | Pre-outs, tape loop, remote control, plug-in module slot for phono or DAC |
Finish | Black |
