XM Series
For when the rest of the house is asleep.
A headphone amplifier with an output impedance below 5 ohms and 1.5 watts into 33 ohms, that also works as a preamplifier with moving-magnet phono, coaxial and optical S/PDIF, and USB to 32-bit/768kHz. Designed and built in Lancing, West Sussex.

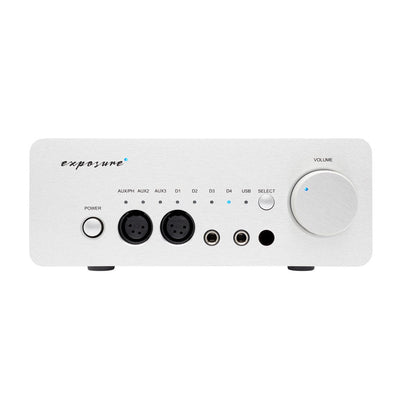

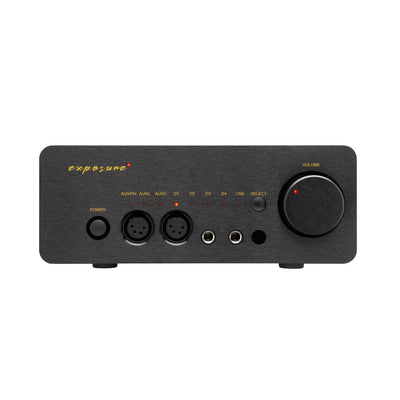

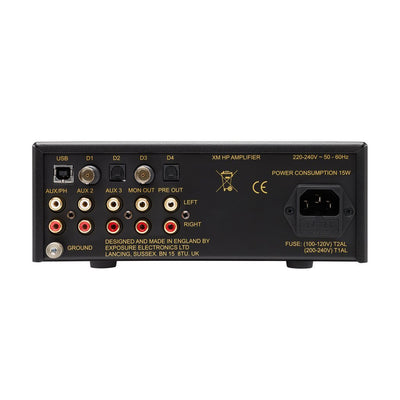

Exposure XMHP Headphone Amplifier - Preamp with DAC & Phono
Popular upgrades
Pairs well with
Designed and built in Lancing, West Sussex since 1974. Three-year guarantee.
Exposure XMHP Headphone Amplifier - Preamp with DAC & Phono
XM Series
A whole system for one listener.
- XMHalf-width separates. Phono, integrated, pre, mono, headphone, CD.You are here
- 2510Full-width. Seventy-five watts, with an MM phono stage as standard.
- 3510The complete tier. Integrated, pre, stereo power, monoblocks and CD.
- 5510The current flagship. One hundred and twenty watts, black only.
Within this tier
- Integrated
- Pre
- Phono
- Monoblocks
- Headphone
- CD
Shelf plan
Half the width. Deeper than it looks.
Drawn to scale, viewed from above. Two half-width boxes sit side by side in the space of one full-width chassis β but check your depth, these run deeper than they are wide.
Technical specifications
| Headphone output impedance | <5 Ξ© |
| Headphone maximum level, 33 Ξ© | 7 V RMS @ 1 kHz & 0.01% THD (1.5 W) |
| Headphone maximum level, 330 Ξ© | 7.5 V RMS @ 1 kHz & 0.01% THD (170 mW) |
| Headphone distortion at 2 V out | <0.003% @ 1 kHz β 120 mW into 33 Ξ©, 12 mW into 330 Ξ© |
| Minimum load impedance | 16 Ξ©, all outputs combined |
| Phono input (MM), AUX/PH | 2.5 mV @ 1 kHz, 47 kΞ©, S/N >73 dB |
| Phono frequency response | Β±0.5 dB, 50 Hz β 20 kHz, high-pass roll-off β1.5 dB @ 20 Hz |
| Line inputs, AUX 2 and AUX 3 | 350 mV @ 1 kHz, >14 kΞ©, gain Γ3.75 (+11.5 dB) |
| Analogue distortion and noise | <0.005% @ 1 kHz at 1.3 V RMS out; S/N >92 dB |
| S/PDIF inputs | BNC coaxial and optical, 32 β 192 kHz PCM. S/N >98 dB |
| USB input | 44.1 β 768 kHz, up to 32-bit PCM, DSD Γ64β256 (DoP) |
| Channel separation | >60 dB @ 20 kHz |
| Power consumption | <15 W |
| Dimensions and weight | 218 Γ 90 Γ 363 mm (W Γ H Γ D), 4 kg net / 5 kg gross |
What headphones will it drive?
How is this different from the XM7?
Can I run a turntable and a computer into it?
About the Exposure XMHP Headphone Amplifier - Preamp with DAC & Phono
Five Stars, Any Way You Use It: Exposure XMHP
The Exposure XMHP is three great products in one compact box: an award-winning headphone amplifier, a preamplifier with high-resolution DAC, and a quality moving-magnet phono stage. Hi-Fi Choice gave it a full five stars, and its verdict says it all: "There's a lot to like about the XMHP, but what's so impressive is that every aspect of this versatile product is done to a high standardβ¦ it comes highly recommended β headphones or not."
Headphone Amp First, Compromise Never
At its heart is a dedicated, high-performance headphone stage engineered to bring out the best in a wide range of headphones β with the seamless, unfatiguing delivery Exposure is known for. Feed it digitally through the high-resolution DAC, connect a turntable to the MM phono input, or use it as a compact preamplifier at the hub of a desktop or main system. Whatever the source, the XMHP treats it properly.
Built Like Its Bigger Siblings
A custom-made toroidal transformer and an all-aluminium chassis keep noise low and resonance in check, in the familiar half-width XM form factor and black or titanium finishes. Small on the shelf, seriously capable in use.
Why You'll Love the Exposure XMHP
- Three-in-one β headphone amp, preamp with hi-res DAC, and MM phono stage
- Hi-Fi Choice 5 stars β "every aspectβ¦ done to a high standard"
- Dedicated headphone stage β brings the best from a wide range of headphones
- Real vinyl input β quality moving-magnet phono stage on board
- Low-noise build β custom toroidal transformer, all-aluminium chassis
- Hand-built in England β compact XM form, black or titanium
Frequently Asked Questions
Is the XMHP just a headphone amplifier?
No β it's a headphone amplifier, a preamplifier with a high-resolution DAC, and a moving-magnet phono stage combined. You can build a compact system around it, headphones or loudspeakers.
Can I connect a turntable to the XMHP?
Yes, via its built-in moving-magnet (MM) phono input β no separate phono preamp required for MM cartridges.
What did the reviews say?
Hi-Fi Choice awarded it five stars, praising how every aspect of this versatile product is done to a high standard and recommending it "headphones or not."
Exposure XMHP Technical Specifications
| Type | Headphone amplifier / preamplifier with DAC and MM phono |
| Digital | High-resolution onboard DAC |
| Phono | Moving-magnet (MM) input |
| Transformer | Custom-made toroidal |
| Chassis | All-aluminium, half-width XM form |
| Award | Hi-Fi Choice 5 stars |
| Finishes | Black or titanium |
| Made in | England β Exposure Electronics |
